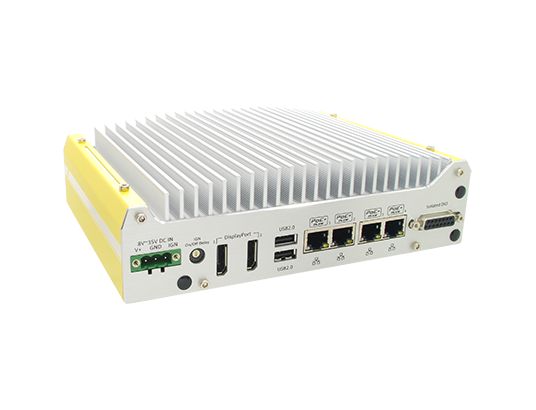

M1142

Mobile NVR

Rugged Fanless Mobile NVR Featuring 4 /6 /8 POE Ports, Supports 3G, WiFi, GPS, M12 Connector, and Backup Solution (Backup Server)

Overview

In-Vehicle Mobile NVR GVD M1 Series, In-vehicle mobile NVRs, are turnkey products with embedded Windows 7, built-in G Sensor, 3G/4G/Wi-Fi/GPS support and approved e13 mark certification. Suitable for transpiration solutions, especial with large scale projects (100~200 Mobile NVRs), including buses, school buses, vehicles, etc. It only takes 5~30 minutes to backup video with VMS Platform (video length of 24~144 minutes and 2MP@25fps with 4.8Mb).

Features

  • Fast Installation with Power over Ethernet

    It’s easy to install cameras using power through ethernet form NVR without extra adapter.

  • Anti-shock & Anti-vibration

    Advanced safety feature anti-shock/vibration certified by MIL-STD-810G.

  • Built-in GPS Receiver

    Locating and Tracking the vehicle for surveillance applications such as vehicle management, history route checking, real-time monitoring

  • Built-in G Sensor

    It can send message alerts automatically for SOS in case of an accident.

  • Dual Display

    Dual Monitor (VGA/HDMI/DVI) Support (Live View, Alarm Pop-up, etc.)

  • Hot Swappable Hard Disk Drives

    It’s easy to transfer the hard disk drive from mobile NVR to backup server without need to shut down NVR power.

  • Power Ignition Management

    Protecting the power system and avoid running down the battery.

Technical Specification

Item Mobile NVR (Anti-Vibration)
CPU Intel® Celeron™ 1020E
Memory DDR3 4G
Operation System (OS) Windows 7 Embedded
Network Protocols TCP/IP ,UDP, HTTP, HTTPs, SMTP, SNMPv3, DNS, DHCP, NTP, ARP, ICMP, FTPc, FTPs, DDNS, RTP

(RTCP, RTSP), IGMPv3, UPnP, CIFS, NFS, IEC802.1x

Language English, Spanish, French, German, Italian, Japanese, Chinese, etc.
Watchdog Hardware Watchdog, Software Watchdog
System Update Supports NVR Software Update
Certification CE, FCC Class A, eMark, EN 50155
IP Camera License 4ch
Local Video Display Fram Rate D1 @ 120fps
Live Video Stream Output Number 16
Video Recording Rate Max.12Mbps
Recording Resolution D1, 1.3~20 Megapixel
Video Codec H.264 High Profile, MPEG4, M-JPEG, MxPEG
Audio Codec Two-Way Audio, G. 711, G.726, AAC
Streaming Type Unicasting, Multicasting
Display Pattern 1×1, 2×2 and 3×3
Viewing Operation 1×1, 2×2 and 3×3 switch, Touring
Panic Button Panic Button
G sensor Vehicle Rollover Detection
GPS Detection Vehicle out-of-route, Vehicle Overspeed, Vehicle Arrival
Configurations Configurations of NVR, Camera, Event, Alarm, Device, DI/DO, etc.
User Authority Export Video Clip, PTZ Control, Live View, Playback, Alarm Search, Configuration, Remote

System Control, etc.

Recording Mode Full Time Recording, Recording by Schedule, Event, Alarm, Motion Detection
E-map Mapping Cameras and DI/DO Points, Map Hyperlink
Route Editor Start, Stop and Sestination Points, Route Plan
PTZ Control Preset Point, Patrol, Digital PTZ
Display Patterns 1, 2, 3, 4, 5, 6, 8, 9, 12, 13, 16, 18, 24, 25, 36, 48, 64
Viewing Operations ROI (Region of Interest), Tour
Video Search Time, Event, Alarm
Synchronous Playback up to 4ch
Video Playback Time Slider Control Panel (Forward, Backward, Speed Control, Sync. Playback)
Video Export Video Export via USB (Supports .avi and .ava Format), Digital Watermark
Intelligent Search Missing Object, Foreign Object
Intelligent Video Analytics E-fence, Video Motion Detection, People Counting, Licensed Plate Recognition
Event Log Event logs of System, Cameras, User, etc.Video Loss, Sensor Triggered, HDD Crashed, System Crashed.
Alarm Event / Search Abnormal Trandaction, E-fence, GPS Alarm,Video Motion Detection, Panic Button, Vehicle out-of-route, Vehicle Overspeed, Vehicle

Rollover

Alarm Notification Pop-up, E-mail, DI/DO, Trigger Recording
Alarm In / Alarm Out DI/DO Control, Modbus (Master, Slave)
VMS/CMS Client VMS(E300), CMS(E150), Thin Client(E90 – Windows XP/7/8)
Supports Client Numbers 5
Lan Port Gigabit Lan (RJ45) with POE x 4
Ethernet 10/100/1000M Auto Negotiation
Mobile Supports 3G, 4G by Region (Optional accessory)
Wi-Fi Supports Wi-Fi (Accessory)
GPS Optional accessory (Bundle with 3G module)
G-sensor Built in G-sensor
Local Display DVI x 1, DP x2
Local Display Resolution 1920×1200
Hard Disk Drive SATA/SSD
Hard Disk Trays (Bays) 1pcs (Easy-Swap), 1pcs internal
Storage Capacity 1TB (2.5″ HDDx1) or

256GB (2.5″ SSDx1)

USB Port USB 3.0 x4, USB 2.0 x2
Communication Port RS232 x1, RS232/422/485 x1
Audio Port Rear: Mic-in and Line-out (terminal Block MIO Connector)

(Terminal Block MIO

Connector)

CAN Bus NA
Power Voltage 9~36Vdc (Vehicle Ignition Power Management)
Power Consumption 20W (Without POE

Consumption)

Operation Temperature -25°C ~ 70°C
Storage Temperature -40 – 85°C
Humidity 10%~90%
Dimensions (W)x(H)x(D)mm 210 x 165 x 62mm
Net Weight 2.8 Kg
Mounting Wall mount (Standard)
