LCD Display System

Features

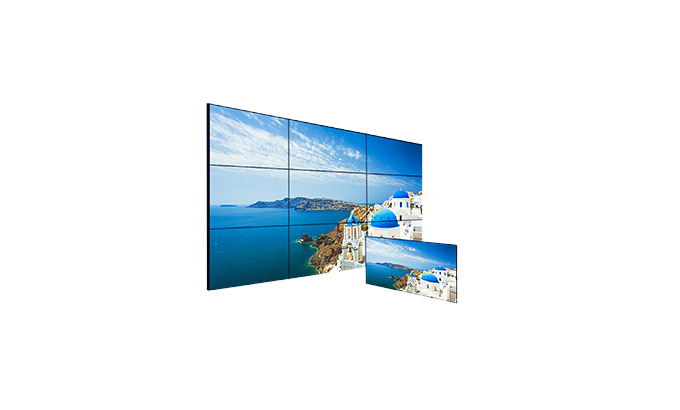

  • KEDACOM LCD product features ultra-narrow bezel panel with seams minimum at 1.8mm. Direct type LED backlight can accomplish high brightness and wide color gamut. There are rich selections of video interfaces of DVI VGA, HDMI and many more. Now users can mix and match three different sizes-46", 49" and 55", two seam types-1.8mm and 3.5mm, two brightness levels-500cd/m2 and 700cd/m2,according to their own requirement. Compared to LED Display, the LCD system has a better performance price ratio.

Technical Specification

  JL-L1-49H18 JL-L1-49L18 JL-L1-55H18 JL-L1-55L18
Diagonal 49″ 49″ 55″ 55″
Bezel Width 1.8mm 1.8mm 1.8mm 1.8mm
Panel Type S-IPS S-IPS S- IPS S- IPS
Backlight Direct LED Direct LED Direct LED Direct LED
Display Size 1073.8 × 604mm 1073.8 × 604mm 1209.6 × 680.4mm 1209.6 × 680.4mm
Dimensions 1075.72 × 605.94 × 74.1mm 1075.72 × 605.94 × 74.1mm 1211.5 × 682.3 × 66.3mm 1211.5 × 682.3 × 66.3mm
Net Weight 20kg 20kg 21kg 21kg
Gross Weight 22kg 22kg 23.5kg 23.5kg
Resolution 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Contrast Ratio 4000:1 3000:1 4000:1 3000:1
Luminance 700cd/m² 500cd/m² 700cd/m² 500cd/m²
Aspect Ratio 16:09 16:09 16:09 16:09
Response Time 8ms 8ms 8ms 8ms
Chroma 16.7M 16.7M 16.7M 16.7M
Viewing Angle 178°(H) / 178°(V) 178°(H) / 178°(V) 178°(H) / 178°(V) 178°(H) / 178°(V)
Input 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC
output 1 × BNC 1 × BNC 1 × BNC 1 × BNC
Control RS232, IR RS232, IR RS232, IR RS232, IR
Other Interface USB USB USB USB
Power Input AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz)
Max. Consumption (W) 260W 260W 230W 230W
Lifetime 50,000hrs 50,000hrs 50,000hrs 50,000hrs
Operating Temp. (℃ ) 0°C – 50°C 0°C – 50°C 0°C – 50°C 0°C – 50°C
Storage Temp. (℃ ) -20°C – 60°C -20°C – 60°C -20°C – 60°C -20°C – 60°C
Operating Humidity (RH) 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing
Storage Humidity (RH) 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing
Driving Mode Constant Current Drive Constant Current Drive Constant Current Drive Constant Current Drive
Frame Rate (Hz) 50 / 60 50 / 60 50 / 60 50 / 60
Refresh Rate (Hz) 3840 3840 3840 3840
Lifetime (Hrs) 100,000 100,000 100,000 100,000
Operating Temp. (℃ ) -10 ~ +55 -10 ~ +55 -10 ~ +55 -10 ~ +55
Storage Temp. (℃ ) -25 ~ +85 -25 ~ +85 -25 ~ +85 -25 ~ +85
Operating Humidity (RH) 10 ~ 90% RH non-condensing 10 ~ 90% RH non-condensing 10 ~ 90% RH non-condensing 10 ~ 90% RH non-condensing
Storage Humidity (RH) 10 ~ 95% RH non-condensing 10 ~ 95% RH non-condensing 10 ~ 95% RH non-condensing 10 ~ 95% RH non-condensing
  JL-L1-46H35 JL-L1-46L35 JL-L1-49L35 JL-L1-55H35 JL-L1-55L35
Diagonal 46″ 46″ 49″ 55″ 55″
Bezel Width 3.5mm 3.5mm 3.5mm 3.5mm 3.5mm
Panel Type S-PVA S-PVA S-PVA S-PVA S-PVA
Backlight Direct LED Direct LED Direct LED Direct LED Direct LED
Display Size 1018.08 × 572.67mm 1018.08 × 572.67mm 1073.8 × 604mm 1209.6 × 680.4mm 1209.6 × 680.4mm
Dimensions 1021.98 × 576.57 × 70mm 1021.98 × 576.57 × 70mm 1075.72 × 605.94 × 74.1mm 1213.5 × 684.3 × 67.5mm 1213.5 × 684.3 × 67.5mm
Net Weight 18kg 18kg 20kg 21kg 21kg
Gross Weight 20.5kg 20.5kg 22kg 23.5kg 23.5kg
Resolution 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080 1920 × 1080
Contrast Ratio 4000:1 3000:1 3000:1 4000:1 3000:1
Luminance 700cd/m² 500cd/m² 500cd/m² 700cd/m² 500cd/m²
Aspect Ratio 16:9 16:9 16:9 16:9 16:9
Response Time 8ms 8ms 8ms 8ms 8ms
Chroma 16.7M 16.7M 16.7M 16.7M 16.7M
Viewing Angle 178°(H) / 178°(V) 178°(H) / 178°(V) 178°(H) / 178°(V) 178°(H) / 178°(V) 178°(H) / 178°(V)
Input 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC 1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC
output 1 × BNC 1 × BNC 1 × BNC 1 × BNC 1 × BNC
Control RS232, IR RS232, IR RS232, IR RS232, IR RS232, IR
Other Interface USB USB USB USB USB
Power Input AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz)
Max. Consumption (W) 260W 260W 260W 260W 260W
Lifetime 50,000hrs 50,000hrs 50,000hrs 50,000hrs 50,000hrs
Operating Temp. (℃ ) 0°C – 50°C 0°C – 50°C 0°C – 50°C 0°C – 50°C 0°C – 50°C
Storage Temp. (℃ ) -20°C – 60°C -20°C – 60°C -20°C – 60°C -20°C – 60°C -20°C – 60°C
Operating Humidity (RH) 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing 10%-85% RH Non-Condensing
Storage Humidity (RH) 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing 5%-95% RH Non-Condensing
