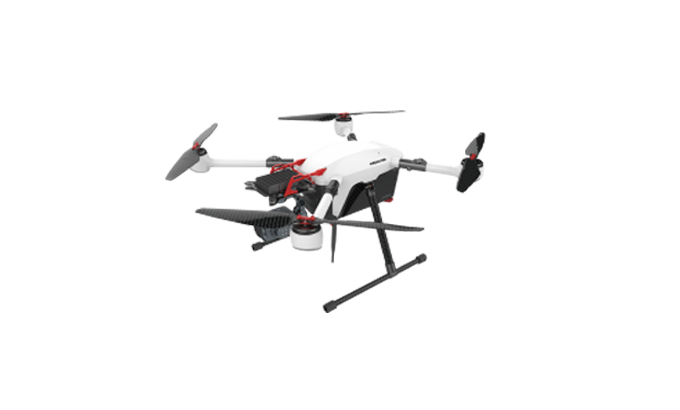

KUV-A4080

Quad-rotor Drone

Features

  • High Performance
    • Carbon fiber material
    • Up to 15m/s high speed flying, 6km long distance transmission
    • Up to 30min flight time
    • Up to 3000m flight height
    • Up to 12m/s wind resistance
  • Various Security Mechanisms
    • Support low power return
    • Support signal loss return
    • Support broken propeller protection
  • Various Task Load Accessories
    • Support multiple Cameras, Megaphone, Throwing Device, meet various scenarios
    • Support up to 1.5kg task load weight
  • Abundant Functions and Features
    • One-button to take off / land / return
    • Supports location function by GPS, Beidou, GLONASS

Technical Specification

　 KUV-A4080
Number of rotors 4
Diagonal Wheelbase 770mm
Dimensions 1003 × 998 × 359mm / 39.49″ × 39.29″ × 14.14″
Fold Dimensions 494 × 374 × 359mm / 19.45″ × 14.73″ × 14.14″
Location Technology GPS / Beidou /  GLONASS
Net Weight 6.2kg (No battery) / 13.67lb
Max. Takeoff Weight 7.4kg / 16.32lb
Max. Flight Time (No Mount) 30mins
Hovering Accuracy Vertical: ±0.5m , Horizontal: ±1.0m
Max. Speed 15m/s
Max. Flight Height 3000m / 9842.5′
Max. Takeoff Altitude 3000m / 9842.5′
Max. Ascent Speed 6m/s
Max. Descent Speed 3m/s
Max. Tilt Angle 30°
Max. Wind Speed Resistance 12m/s
Max. Angular Velocity 50°/s
Max Transmission Distance 6km
Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F
Capacity 22000 mAh
Battery Type Lipo
Net Weight 2.8kg / 6.17lb
Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F
Storage Temperature -40°C ~ 60°C / -40°F ~ 140°F
* All battery claims depend on network configuration and many other factors, actual results will vary.

Resource

Specification Document

KUV-A4080 Specification Document

Release Date: 2015/8/2 PDF 511 KB
