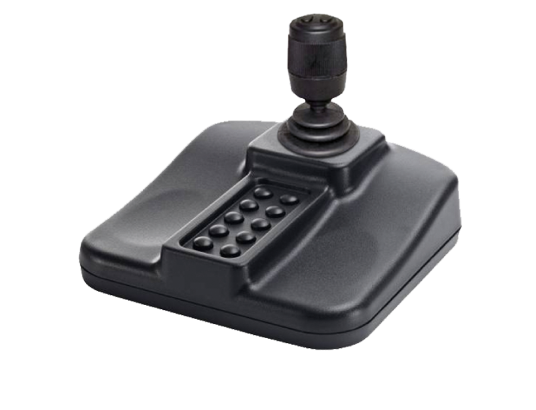

K1000

USB Joystick Controller

Easy Joystick Control with 6 Quick Function Keys for VMS Manager (E300 Series)

Overview

The GVD K1000 USB joystick controller is designed for VMS Platform via VMS manager to control PTZ functions of all network cameras. The sensitivity allows for fast, flexible and secure operation with network cameras with pan, tilt and zoom functionality. The GVD K1000 has a three-axis Hall-effect joystick, 6 quick function keys and a USB interface. It’s easy to install, you just connect the joystick to the USB port on VMS manager to control the cameras.

Features

  • Control PTZ Dome Network Cameras

    The GVD K1000 is a USB joystick controller, specifically designed for responsive and accurate control of all PTZ dome network cameras.

  • Powerful Joystick for PTZ Control

    It features a three-axis, durable (Hall-effect) joystick with X/Y-axis for positioning and turning knob to zoom.

  • 6 Quick Function Keys

    6 function keys on the base are to hold alarm popup, close alarm popup, and preset PTZ cameras.

  • USB Powered

    The GVD K1000 USB joystick controller is powered via USB and thus very easy to install.

  • Support Windows 7, Vista, XP, 2000

    It integrates seamlessly with GVD VMS platform recognizing joystick inputs via Microsoft’s DirectX.

  • CE, RoHS and FCC Certification

    The GVD K1000 complies with RoHS, Part 15 of the FCC Rules, EN 55024:1998, EN 55022, and CE.

Technical Specification

Joystick Performance Hall-effect Joystick with Three Axes, X/Y: for Camera View Positioning, Z: for zoom in and out
Joystick Travel 36° for X and Y axes, 60°for Z axis
Centering Single Spring, Omni-directional
Push-buttons Two on Top of the Handle and Ten on the Base
Connection USB port, Connected Directly to the Workstation/NVR
Connectors USB Type A Male , Cable Length: 2m; 6ft. 6.8in.
Systems Support Integration Windows 7, Vista, XP, 2000
Supported Protocols USB HID 1.1 game controller , Direct X (Gaming Control) , Joystick: Three HID axes , Pushbuttons: 12 HID buttons , Uses standard DirectX HID drivers , Connects directly to workstation PC
Power Via USB interface (5V DC) , Consumption 32mA
Operating Conditions -25 to +85°C (-13 to +185°F)
Environmental For indoor use only
Dimensions 168.7(L)x156.5(W)x127.8(H)mm
Weight 440 g
Desktop Housing High Impact ABS
Joystick Handle Glass filled nylon
Joystick Shaft Stainless Steel
Joystick Boot Neoprene , Suitable for Right- and Left-handed Use
Approvals EN 55024:1998, EN 55022, CE , FCC Part 15 Subpart B Class B , RoHs compliant
