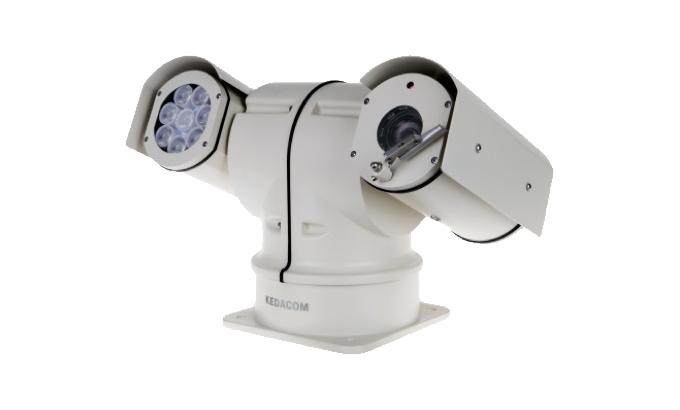

IPC521-F233-N

2.0MP 33x Vehicle PTZ Camera

Features

  • Excellent Image Quality
    • 2.0 Megapixel 1/3’’ Progressive Scan CMOS Sensor
    • High definition and smooth picture, 1080p@30fps
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.003lux with color picture
    • IR automatically adjusts
    • 120dB Ultra WDR
    • 3D noise reduction / HLC / BLC
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -40°C ~ 70°C
    • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
  • Large Scale
    • 33x optical zoom
    • IR distance up to 200m
  • Abundant Functions and Features
    • SD card optional, supports Automatic Network Replenishment (ANR)
    • Wiper supported
    • Vehicle based PT structure

Technical Specification

Image Sensor 1/3’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.6, AGC ON)

B/W: 0.0003lux @ (F1.6, AGC ON); 0lux with IR

Shutter Speed 1 ~ 1/30,000S
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >55dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Focal Length 4.5 ~ 148.5mm, 33x optical
Zoom Speed Approx. 3s (Optical)
Angle of View 67.8°~ 2.34° (Wide~Tele)
Min. Object Distance 300 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F1.6 (Wide) / F4.4 (Tele)
Focus Control Auto / Manual / Semi-Automatic
IR LED 8pcs IR LED Array
IR Distance 150 ~ 200m
IR Intensity Automatically adjust according to zoom ratio
Pan / Tilt Range 360° Endless / -85° ~ 85° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1° ~ 80°/s; Pan preset speed: 120°/s

Tilt manual speed: 0.1° ~ 60°/s; Tilt preset speed: 100°/s

Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Wiper Supported
Compression Format H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: D1

Frame Rate Main stream: 1080p@30fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi Stream Supported
Caption Date&Time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Network Protocol TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, firefox, Chrome)
Max. User Access 10 Users (include 2 internal access)
Application Program Onvif (Profile S, Profile G), GB/T 28181-2011, API, CGI
Alarm Triggers Network disconnect
Alarm Events Alarm report / Text overlay / Email notice
Ethernet 10/100M, RJ45 interface
Memory Slot Built-in SD card (optional), up to 128GB
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power 9 ~ 36V DC, wide range voltage input
Power Consumption Max. 60W (IR on)
Weight 7Kg / 15.44lb (Gross Weight)
Dimensions 180 × 375 × 247.5mm / 7.09’’ x 14.77’’ x 9.75’’
