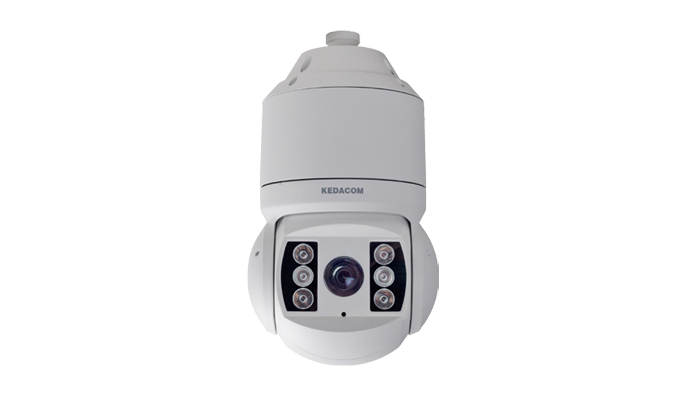

IPC425-F120-N

2.0MP Starlight & Ultra WDR HD 20x IR Speed Dome Camera

Features

  • Excellent Image Quality
    • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
    • High definition and smooth picture, 1080p@30fps
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.003lux with color picture
    • 120dB Ultra WDR
    • IR automatically adjusts
    • HLC / 3D noise reduction
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -40°C ~ 70°C
    • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
  • Large Scale
    • 20x optical zoom
    • IR distance up to 180m
  • Abundant Functions and Features
    • SD card slot, supports Automatic Network Replenishment (ANR)
    • Up to 3 video streams
    • Bi-directional audio / alarm in&out
    • Built-in O-sensor

Technical Specification

Image Sensor 1/2.8’’ progressive scan CMOS
Pixels 2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.6, AGC ON)

B/W: 0.0003lux @ (F1.6, AGC ON); 0lux with IR

Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >=58dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Focal Length 4.7 ~ 94mm, 20x optical
Zoom Speed Approx 3s (Optical)
Angle of View 61°~ 3.64° (Wide~Tele)
Min. Object Distance 300 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F1.5 (Wide) / F3.0 (Tele)
Focus Control Auto / Manual / Semi-Automatic
IR LED 6pcs IR LED Array
IR Distance 120 ~ 180m
IR Intensity Automatically adjust according to zoom ratio
Pan / Tilt Range 360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1° ~ 200°/s; Pan preset speed: 220°/s

Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 200°/s

Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compass Built-in O-sensor
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: D1

Frame Rate Main stream: 1080p@30fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional), NTP, SNMP
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Alarm In / Out 2 x Input / 1 x Output
Memory Slot SD card slot, supports up to 128GB
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power 24V AC / 3A (Power adapter included)
Power Consumption Max. 45W (IR on)
Weight 8 kg / 17.6lb (Gross Weight)
Dimensions Φ214× 379mm /  Φ8.43’’ x 14.92’’
