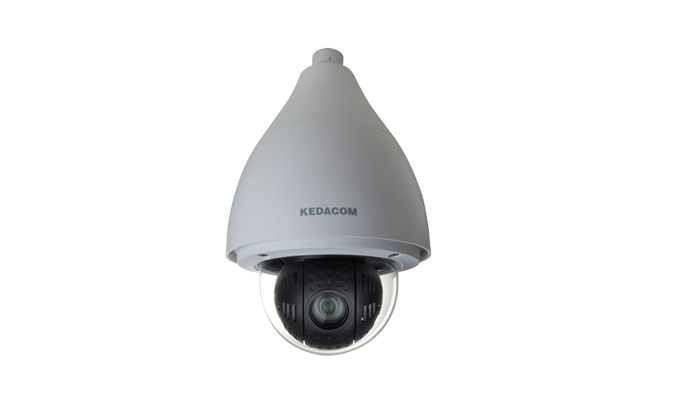

1.3MP HD 16x Network Speed Dome Camera


  • Excellent Image Quality
    • 1.3 Megapixel 1/3’’ progressive scan CMOS sensor
    • High definition and smooth picture, 960p@30fps
    • H.264 high profile video codec, saves up to 30% bandwidth and storage
    • Low illumination, 0.03lux with color picture
    • WDR support / 3D noise reduction
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -40°C ~ 70°C
    • IP67, TVS 6000V lightning protection, surge protection and voltage transient protection
  • Abundant Functions and Features
    • SD card slot, supports Automatic Network Replenishment (ANR)
    • Dual-stream (960p+D1)
    • Bi-directional audio / alarm in and out

Technical Specification

Image Sensor 1/3’’ Progressive Scan CMOS
Pixels 1.3 Megapixel
Min. Illumination Color: 0.03lux @ (F1.5, AGC ON)

B/W: 0.003lux @ (F1.5, AGC ON)

Shutter Speed 1/10 ~ 1/10,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >52dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / BLC / WDR
Focal Length 6 ~ 96mm, 16x
Zoom Speed Approx. 3s (Optical)
Angle of View 56°~ 3.6° (Wide~Tele)
Min. Object Distance 300 ~ 1000mm (Wide~Tele)
Max. Aperture Ratio F1.5 (Wide) / F3.6 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Pan / Tilt Range 360° Endless / 0° ~ 90°
Pan / Tilt Speed Pan manual speed: 0.1° ~ 250°/s; Pan preset speed: 450°/s
Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 350°/s
Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 255
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Patrol / Preset / Pattern Scan/ Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Compression H.264
Image Resolution Main stream: 960p

Secondary stream: D1

Frame Rate Main stream: 960p@30fps

Secondary stream: D1@30fps

Bitrate 64kbps ~ 8Mbps
Bitrate Control VBR / CBR
Dual-Stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
Digital Noise Reduction 3D noise reduction
Image Flip Flip / Mirror
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6 (optional)
User Interface IPC Control (IE)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm Triggers Motion detection / Alarm input
Alarm Events Alarm caption / Snapshot / External output
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Alarm In / Out 2 x Input / 1 x Output
Memory Slot SD card slot, supports up to 128GB
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection Level IP67, TVS 6000V lightning protection, surge protection and voltage transient protection
Power 24V AC / 3A (Power adapter included)
Power Consumption Max. 45W (Heater on)
Weight 6 kg / 13.2lb (Net Weight)
Dimensions Φ228 × 390mm /  Φ8.98’’ x 15.35’’
