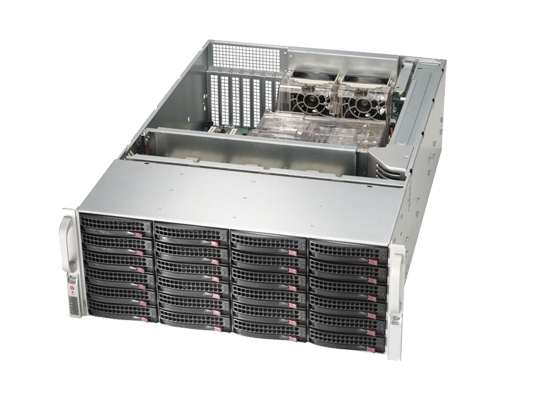

X6024

Backup Server

Backup Video Recording

Overview

Enterprise Rackmount Redundant Servers Key Feature Failover Server Takes over Breakdown Server Instantly GVD Redundant Failover Server offers N+M (M=2) solution for high availability and disaster recovery. It takes over broken-down (Less than 45 seconds) to prevent data loss. IVA GVD X6024/X5016, Backup Servers and Failover Servers, ensure constant video recording and monitoring to prevent data loss. Backup Servers record 128ch full HD real-time video on each camera for double protection, and Failover Servers take over broken-down NVR instantly to prevent data loss. GVD X6024 are reliable and suitable for large-scale project, including governments, homeland security, city surveillance, airports, seaports, mining, offices, factories, campuses, hotels, banks, etc..

Features

  • Seamless Live Viewing and Playback in VMS Platform

    GVD redundant servers ensure constant video recording and monitoring in VMS platform to provide seamless live viewing and playback.

  • Failover Server Takes over Breakdown Server Instantly

    GVD Redundant Failover Server offers N+M (M=2) solution for high availability and disaster recovery. It takes over broken-down (Less than 45 seconds) to prevent data loss.

  • Powerful Storage Solution to Handle Harsh Situations

    GVD X6024 Backup Server is compatible with 3 sets (maximum) of GVD Extended Storage (DAS) which provides mirror video backup by schedule and event from NVR 24×7 in a real-time bases.

  • Easy Project Scale-up with Add-on Servers

    GVD redundant servers are add-on solutions which are simple, reliable and flexible to scale up projects in VMS Platform.

  • Robust and Industry-suited Design

    The self monitoring system with dual watchdog functions monitors the system temperature and the accurate operation of hardware and software to ensure high system continuity.

Technical Specification

Item Backup Server
CPU Intel® Xeon® E3-1240 Processor
Memory DDR3-1333 8G
Operation System (OS) Windows 7 Embedded
Network Protocols TCP/IP ,UDP, HTTP, HTTPs, SMTP,SNMPv3, DNS, DHCP, NTP, ARP, ICMP, FTPc, FTPs,

DDNS, RTP (RTCP, RTSP), IGMPv3, UPnP, CIFS, NFS, IEC802.1x

Watchdog Supports Hardware Watchdog, Software Watchdog
System Update Supports Software Update
Certification CCC / CE / FCC / VCCI
IP Camera License 128ch
Recording Resolution D1, 1.3~20 Megapixel
Video Codec H.264 High Profile, MPEG4, M-JPEG, MxPEG
Audio Codec Two-Way Audio, G. 711, G.726, AAC
Streaming Type Unicasting, Multicasting
Onvif Supports Onvif 2.2, Profile-S
Recording Capacity 96 TB (24x HDDs), RAID 0, 1, 5, 6
Extended Storage Capacity Max. 288 TB (3x S6024)
Lan Port Gigabit Lan (RJ45, On-board Teaming) x2, Dedicated IPMI x1
Ethernet 10/100/1000M Auto Negotiation
Local Display VGA x 1
Local Display Resolution 1920×1200
Hard Disk Drive SATA
Hard Disk Trays (Bays) 24 pcs (Hot Swap)
Storage Capacity 4 TB
RAID Level RAID 0, 1, 5, 6
USB Port USB 2.0 Rear x2
Communication Port RS232 (DB9) x1 – Rear I/O ; RS232 (Header) x1 – Onboard I/O
Power Voltage 100~240 Vac, 50-60 Hz
Redundant Power Supply Support Redundant Power
Power Consumption 575W
Operation Temperature 5°C ~ 35°C (41°F ~ 95°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operation Humidity 8% ~ 90% (N/An-condensing)
Storage Humidity 5% ~ 95% (N/An-condensing)
Dimensions 437(W)x178(H)x660(D)mm
Net Weight 34 Kg
Chassis 4U Rackmount Chassis with Drawer Slides
Extended Storage S6016(16HDDs), S6024(24HDDs)
Keyboard K205
