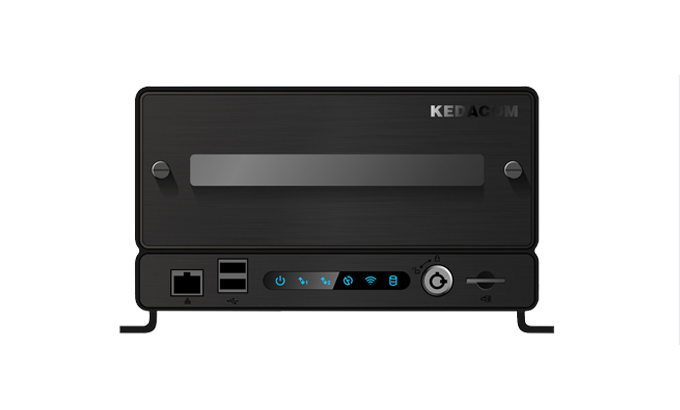

SVR2420

Vehicle PoE NVR

Features

  • Excellent Video Transmission
    • KWTP protocol for 3G / 4G transmission, improves the video stream continuity under unstable network conditions
    • H.265 video codec, saves up to 50% bandwidth and storage
  • High performance
    • 1 x 4K@30fps video decoding capability
    • Up to 12 channel and 4K H.265 supported
  • High Reliability
    • Embedded Linux
    • Low power consumption
    • Aviation plug design for Ethernet, video, audio, control signal and power supply
    • Fan-less design with heat dissipation shell
    • Shock-proof design, protects the HDD while vehicle is being driven
  • Easy to install and Use
    • Automatic network organizing
    • Built-in DHCP server
    • Pluggable HDD drawer, easy to change HDD module
    • HDD module supports USB interface, easy to backup record
  • Abundant Functions and Features
    • Up to 12  IP Camera access
    • Built-in Wi-Fi AP module, can access Wi-Fi IP camera
    • All mobile networks supported
    • Supports dual SIM card bundle
    • Built-in GPS module

Technical Specification

Model

　 SVR2420-0204A/4P SVR2420-0208A/8P SVR2420-0212A/8P

Video/Audio Input

Camera Input 4 channel 8 channel 12 channel
Resolution 8MP(4K), 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Compression H.264 / H.265
Protocols Onvif, RTSP, KEDACOM
Bitrate 64kbps ~ 16384kbps
Incoming Bandwidth 20Mbps 40Mbps 60Mbps

Live Viewing

Local Display 1 x HDMI, 1 x VGA, 2 x CVBS, simultaneously output same content
Layout 1, 4, 9,16
Function E-PTZ / Scheme / Polling

Recording

Resolution 8MP(4K), 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Mode Manual / Continuous / Schedule / Event (Pre / Post)
Event Trigger Supported
Tag Supported

Search & Playback

Search Mode Date and time (Calendar) / Event
Resolution 8MP (4K), 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Playback
(Local Monitor)		 1 x 4K@30fps / 4 x 1080p@30fps
Playback
(Client)		 up to 16 x 4K@30fps
Synchronize Playback

(Local Monitor)

 1 x 4K@30fps / 4 x 1080p@30fps
Synchronize Playback
(Client)		 4 x 4K@30fps
Function Slow forward / Fast forward / Loop / Single frame / E-PTZ

Storage

Max. Internal HDDs 2 x 2.5’’ HDD

Max. 8TB (up to 4TB / each)
Built-in Storage -GH: 1 x 1TB HDD

Audio

Compression G.711a / G.711u / ADPCM / G.722 / G.722.1c / AAC-LC / G.726
Bit rate 32kbps ~ 64kbps
Audio Function Bi-directional audio / Dumb / Mute / Broadcasting

Alarm

Service Alarm Triggers Alarm input / Video lost / Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
System Alarm Triggers Device disconnected / No disk / Disk error / IP Address conflict /Network fault / Insufficient recording space / MAC address conflict / Insufficient snapshot space / Unauthorized access
Alarm Events Snapshot / Recording / PTZ preset / Buzzer / Email / Link to Client / Alarm caption / Live view in first window / Link to TV Wall / Full screen viewing

System

Operating System Embedded Linux
User Management Admin / User
Log Management User login / User operation / Alarm / Backup / Update
Application Programming CGI

Network

Network Protocols TCP / IP, UDP, HTTP, DHCP, DNS / DDNS, RTP / RTCP, RTSP, PPPoE, FTP, SNTP, VSIP, UPNP, SMTP, IPv4, IPv6 (optional)
Viewer Software Web
Max. User Access 16 Users
Function NAT / Socks5 / Multiple network access / Packet loss recovery
Network Test Supported
Wireless -S: Wi-Fi
-G / -GH: Wi-Fi, 3G / 4G
Number of Simcard Slots -S: 0
-G / -GH: default 1, up to 2
3G / 4G Frequency Band FDD-LTE: B1 / B2 / B3 / B5 / B7 / B8 / B20
TDD-LTE: B38 / B39 / B40 / B41
HSPA / UMTS: 850 / 900 / 1800 / 1900 / 2100MHz
GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900MHz
TD-SCDMA: B34 / B39
EVDO/CDMA: BC0 / BC1
Customizable network spectrum
Wi-Fi 802.11 b/g/n/a/ac 2.4G / 5G , Wi-Fi AP
Location Technology GPS, GLONASS
Application Programming Onvif (Profile S, Profile G),  API, CGI

Interfaces

Ethernet 1 x 10 / 100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Mic in / 1 x Line out
Aviation Plug 2 x 10 pin: 4 x PoE RJ45 interface
1 x 4 pin: 2 x CVBS output
1 x 4 pin: Power supply for PTZ camera
1 x 9 pin: Power input 9 ~ 36V DC		 4 x 10 pin: 8 x PoE RJ45 interface
1 x 4 pin: 2 x CVBS output
1 x 4 pin: Power supply for PTZ camera
1 x 9 pin: Power input 9 ~ 36V DC		 4 x 10 pin: 8 x PoE RJ45 interface
1 x 4 pin: 2 x CVBS output
1 x 4 pin: Power supply for PTZ camera
1 x 9 pin: Power input 9 ~ 36V DC
Video Out 1 x HDMI (up to 4K@30Hz)

1 x VGA (up to 1920 x 1080@60Hz)

2 x CVBS (PAL 720 x 576, NTSC 720 x 480)
PoE Camera Input 4 channel 8 channel 8 channel
Alarm In / Out 8 x Input / 4 x Output
Antenna 2 x Wi-Fi Antenna interface, 1 x GNSS Antenna interface, 1 x 4G Antenna interface (up to 2)
Control 1 x RS485, 1 x RS232

Environmental

Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 90%

Electrical

Power DC 9 ~ 36V
Power Consumption max. 96W

Mechanical

Weight 5.6kg / 12.35lb
Dimensions 280 × 180 × 98mm / 11.02’’ x 7.09’’ x 3.86’’

Accessories

Standard 1 x Cable Housing
1 x 18 pin Wire Harness Connector
1 x 20 pin  Harness Connector
5 x Aviation plug connector cable
2 x Wi-Fi Antenna
1 x GNSS Antenna
-G / GH: 1 x 4G Antenna (up to 2)		 1 x Cable Housing
1 x 18 pin Wire Harness Connector
1 x 20 pin  Harness Connector
7 x Aviation plug connector cable
2 x Wi-Fi Antenna
1 x GNSS Antenna
-G / GH: 1 x 4G Antenna (up to 2)		 1 x Cable Housing
1 x 18 pin Wire Harness Connector
1 x 20 pin  Harness Connector
7 x Aviation plug connector cable
2 x Wi-Fi Antenna
1 x GNSS Antenna
-G / GH: 1 x 4G Antenna (up to 2)
Optional HDMI adapter cable (Type-E male to type-A male)
