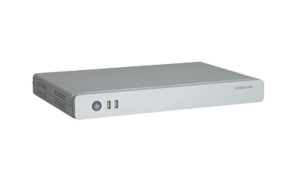

NVR1825-HP

2 Bay PoE Network Video Recorder

Features

  • High-performance
    • Up to 1 x 1080p@30fps / 4 x 720p@30fps video decoding capability
    • 1080p supported
  • Small size
    • 1.6Kg / 3.52lb
    • 350 x 240 x 40mm / 13.78’’ x 9.45’’ x 1.57’’
  • Easy to install
    • Automatic network organizing
    • Build-in DHCP server
    • 4 PoE port
  • High reliability
    • Embedded Linux
    • Low power consumption
    • Supports Automatic Network Replenishment (ANR)
    • Supports Packet Loss Recovery (PLR)
  • Abundant functions and features
    • E-Map, TV-Wall supported
    • Bi-directional audio, Broadcasting
    • NAT, Socks5
    • Alarm management
    • Free CMS (NVR Station), supports 128 NVR simultaneously
    • CMS supports 6 screens simultaneously (4 x Live viewing, 1 x E-Map, 1 x TV-Wall)

Technical Specification

NVR1825-4HP NVR1825-9HP
IP Camera Input 4 channel 9 channel
Resolution 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Compression H.264
Protocols Onvif, RTSP, KEDACOM
Incoming Bandwidth 20Mbps 45Mbps
Local Display 1 x HDMI, 1 x VGA, simultaneously output same content
Multi-Screen Display Local monitor 1, 2, 4 1, 2, 4, 9, 1+4, 1+8
Multi-Screen Display Client up to 4 screen simultaneously:
1, 3, 4, 9, 12, 16, 20, 25, 30, 36, 42, 49, 56, 63, 64
1+5, 1+7, 1+8, 1+9, 1+11, 1+15, 1+16, 1+33, 1+47, 1+48
E-Map Live Viewing in E-Map (NVR Station)
Function E-PTZ / Scheme / Polling / TV-Wall (optional with decoder)
Resolution 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Mode Manual / Continuous / Schedule / Event (Pre / Post)
Event Trigger Alarm input / Video lost / Motion detection
Tag Supported
Reliability Automatic Network Replenishment (ANR)
Search Mode Date and time (Calendar) / Event
Resolution 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Playback (Local Monitor) 1 x 1080p@30fps or 4 x 720p@30fps 1 x 1080p@30fps or 4 x 720p@30fps
Playback (Client) 4 x 1080p@30fps 4 x 1080p@30fps
Synchronize Playback (Local Monitor) 4 x 720p@30fps 4 x 720p@30fps
Synchronize Playback (Client) 4 x 1080p@30fps 4 x 1080p@30fps
Function Slow forward / Fast forward / Loop / Single frame / E-PTZ
Max. Internal HDDs 2 x 3.5’’ HDD

Max. 8TB (up to 4TB/each)

Compression G.711a / G.711u / ADPCM / AAC-LC
Bit rate 32kbps ~ 64kbps
Audio Function Bi-directional audio / Dumb / Mute / Broadcasting
Alarm Triggers Alarm input / Video lost / Motion detection / System alarm
Alarm Events Snapshot / Recording / PTZ preset / Alarm out / Buzzer / Email / Link to Client / Alarm caption
Operating System Embedded Linux
User Management Admin / User
Log Management User login / User operation / Alarm / Backup / Update
Application Programming NVR Station SDK
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, SNTP, VSIP
Viewer Software CMS (NVR Station) / Web / iOS app / Android app
Max. User Access 64 Users
Output Bandwidth 45Mbps
Function NAT / Socks5 / Multiple network access / Packet loss recovery / Auto network organizing
Network Test Supported
Ethernet 1 x 10/100M, RJ45 interface
PoE 4 x 10/100M PoE port, RJ45 interface, 15W / each port
Video Out 1 x HMDI (up to 1920 x 1080@60Hz)
1 x VGA (up to 1920 x 1080@60Hz)
Audio In / Out 1 x RCA Line in / 1 x RCA Line out
Alarm In / Out 2 x Inputs / 2 x Outputs
Control 1 x RS485
USB 2 x USB 2.0
Operating Temperature -10°C ~ 55°C / 14°F ~ 131°F
Operating Humidity 10% ~ 90%
Power 12V DC ± 10%
Power Consumption Max. 20W (HDD / PoE not included)
Weight 1.6kg / 3.52lb (HDD not included)
Dimensions 350 x 240 x 40mm / 13.78’’ x 9.45’’  x 1.57’’
