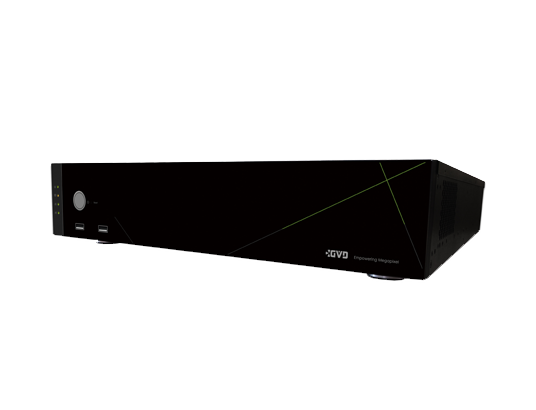

M4006

Rackmount Standalone NVR

Prebuilt 16/ 24/ 32/ 48ch IP Camera Licenses with up to 6 HDDs Featuring Embedded Windows 7 and POS Software

Overview

Rackmount Standalone NVR GVD M4006, rackmount standalone NVR, is a turnkey product with embedded Windows 7 and POS software, that’s suitable for mid-sized installations, including government buildings, offices, factories, campuses, hotels, banks, retail chain stores, shopping malls, etc.. It’s reliable and flexible to scale up projects with VMS Platform (300~5000ch) or CMS Platform (64~300ch) to suit your needs.

Features

  • Support Onvif Profile S & Onvif 2.2

    Supports 90+ brands of IP cameras and 2000+ models.
    GVD offers better and more flexible PTZ control than ONVIF.
    GVD advanced Motion Detection integration surpasses ONVIF.

  • Scale up Projects with VMS/CMS

    GVD M4006 NVRs are suitable for VMS platform (300~5000ch) or CMS platform (64~300ch) to scale up the projects to meet your needs.

  • HD Empowerment

    GVD unique software has advanced features such as MVP, ROI,
    Turbo Mode Plus, etc. that offers high performance video recording and display.

  • Smooth Video with Exclusive Video Playout Control

    Built-in Exclusive Video Playout Control technology that enables smooth video and limiting of video quality degradation for different situations like uniform Camera Time Stamp, Unstable Network Conditions.

  • IVA Functions and POS Integration

    IVA GVD POS editor integrates with all different POS machines via GVD POS Box, that’s suitable for retail chain stores. The GVD software also combines with IVA functions such as MVP, e-fences, missing object, foreign object for more analyses

  • Powerful Alarm Management

    Alarm notification by Pop-up, E-mail, DI/DO (Modbus Support) when video loss, sensor triggered, HDD crashed, system crashed, abnormal transaction, e-fence, video motion detection, etc.

Technical Specification

Item Rackmount Standalone NVR
CPU Intel® Core™ i5-2400 Processor
Memory DDR3-1333 4G
Operation System (OS) Win 7 Embedded
Network Protocols TCP/IP ,UDP, HTTP, HTTPs, SMTP,SNMPv3, DNS, DHCP, NTP, ARP, ICMP, FTPc, FTPs,

DDNS, RTP (RTCP, RTSP), IGMPv3, UPnP, CIFS, NFS, IEC802.1x

Language English, Spanish, French, Dutch, Italian, Japanese, Chinese, etc.
Watchdog Supports Hardware Watchdog, Software Watchdog
System Update Supports NVR Software Update
Certification CCC / CB / CE / FCC / VCCI
IP Camera License 16ch, 24ch, 32ch, 48ch
Display Performance D1@1200fps / 1.3MP@780fps / 2MP@425fps (Turbo Mode – Real Time)
Recording Throughput Max.288Mb
Recording Resolution D1, 1.3~20 Megapixel
Video Codec H.264 High Profile, MPEG4, M-JPEG, MxPEG
Audio Codec Two-Way Audio, G. 711, G.726, AAC
Streaming Type Unicasting, Multicasting
Onvif Supports Onvif 2.2, Profile-S
Recording Capacity 24 TB (6x HDDs), RAID 0, 1, 5, 6 (Option)
Configurations Configurations of NVR, Camera, Event, Alarm, Device, DI/DO, etc.
User Authority Export Video Clip, PTZ Control, Live View, Playback, Alarm Search,

Configuration, Remote System Control, etc.

Recording Mode Full Time Recording, Recording by Schedule, Event, Alarm, Motion Detection
E-map Mapping Cameras and DI/DO Points, Map Hyperlink
PTZ Control PTZ Control, Preset Point, Patrol, Digital PTZ
Display Pattern 1, 2, 3, 4, 5, 6, 8, 9, 12, 13, 16, 18, 24, 25, 36, 48, 64
Viewing Operation ROI (Region of Interest), Tour
Video Search Time, Event, Alarm
Synchronous Playback up to 16ch
Video Playback Time Slider Control Panel (Forward, Backward, Speed Control, Sync. Playback)
Video Export Video Export via USB (Supports .avi and .ava Format), Digital Watermark
Intelligent Search Missing Object, Foreign Object
Intelligent Video Analytics E-fence, Video Motion Detection
Event Log Event logs of System, Cameras, User, etc.
Alarm Event / Search Video Loss, Sensor Triggered, HDD Crashed, System Crashed, Abnormal

Transaction, E-fence, Video Motion Detection

Alarm Notification Pop-up, E-mail, DI/DO, Trigger Recording
Alarm In / Alarm Out DI/DO Control, Modbus (Master, Slave)
Web Client Support Browser IE 9.0
APP Client iOS (iPhone, iPad), Android
VMS/CMS Client VMS(E300), CMS(E150), Thin Client(E90 – Window XP/7/8)
Supports Client Numbers 5
POS License 8ch
POS Integration Integration with all brands via GVD POS Editor
Transaction Viewing Live Viewing with Transaction data
Search / Playback Time, Item (Keyword), Price with Transaction data and Video
Abnormal Transaction Alarm Rule (Item, Value), Alarm Popup, Alarm Search
Lan Port Gigabit Lan (RJ45) x2
Ethernet 10/100/1000M Auto Negotiation
Local Display VGAx1, HDMIx1, DVI-Dx1 (Support Two Video Outputs Simultaneously)
Local Display Resolution 1920×1200
Hard Disk Drive SATA
Hard Disk Trays (Bays) 6 pcs
Storage Capacity 4 TB
RAID Level RAID 0, 1, 5, 6 (Option)
USB Port USB 2.0 Front x2, Rear x4
Communication Port RS232 x1 – Rear I/O
Audio Port Rear : MIC-in x1, Line-out x1, Line-in x1
Power Voltage 100~240 Vac, 50-60 Hz
Power Consumption 127W
Operation Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Operation Humidity 0% ~ 90%
Storage Humidity 5% ~ 95%
Dimensions 430(W)x98(H)x550(D)mm
Net Weight 9.28Kg
Chassis 2U Rackmount Chassis with Chassis Handles
Front Panel Bezel Support
POS Box A0003-POS (RS-232)
Application options Yes (Smart/Mobile Client)
Task oriented tabs Yes (Smart Client)
Toggle between Advanced mode and Simplified mode. Default mode: A – Advanced, S – Simplified Yes (Smart Client)

Resource

Specification Document

M4006 Specification Document
