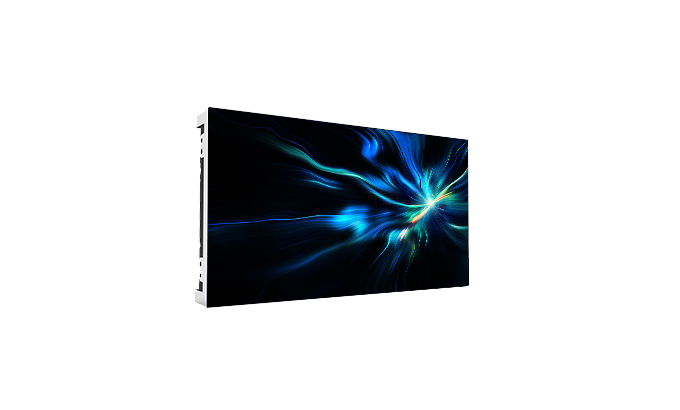

Ultra-fine Pitch LED Display System

Features

  • KEDACOM‘s JY series fine pitch LED screen solution, is specially designed as a highly professional level display solution for a variety of indoor applications, including command center and video communication room in particular, with options of 1.2mm and 1.5mm available. In order to solve traditional LED screen solution’s problem such as the lack of image fidelity in real-time monitoring, conference and command scenes, JY series uses high end LED components accompanied with KEDACOM image optimizing algorithm, which will truly reflect synchronous and vivid viewing image for command center and video communication system. In addition, KEDACOM creates an innovative star topology connection scheme and redundancy backup mechanism making it applicable to 24/7 operations, which provides safety and reliability for your emergency dispatching system.
  • Professional Image Performance
    • Low Brightness but High Grey Scale
    • Professional Image Processing
    • Wide Angle of View
    • 16:9 & High Resolution
  • Delicate Industrial Design and Easy Maintenance
    • High Working Accuracy
    • Magnetic and Modular
    • Fanless & Silent
    • Graphic Management
  • System-level High Reliability
    • Pioneering Star Topology
    • Power and Link Redundancy

Technical Specification

  JY-P2-X12
(Single Power Single Receiver)
JY-P2-X12S
(Dual-Power Dual- Receiver)
JY-P2-X15
(Single Power Single Receiver)
JY-P2-X15S
(Dual-Power Dual- Receiver)
Pixel Configuration SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1
Pixel Pitch (mm) 1.27 1.27 1.588 1.588
Module Resolution (W × H) 240 × 135 240 × 135 192 × 108 192 × 108
Module Dimensions (W × H × D) 304.96 × 171.54 x 13 (mm) 304.96 × 171.54 x 13 (mm) 304.96 × 171.54 x 13 (mm) 304.96 × 171.54 x 13 (mm)
No. of Modules per Unit (W × H) 2 × 2 2 × 2 2 × 2 2 × 2
Unit Resolution (W x H) 480 × 270 480 × 270 384 × 216 384 × 216
Unit Dimensions (W × H × D) 609.92 × 343.08 × 82 (mm) 609.92 × 343.08 × 82 (mm) 609.92 × 343.08 × 82 (mm) 609.92 × 343.08 × 82 (mm)
Unit Area (m2) 0.209 0.209 0.209 0.209
Weight per Unit (kg / unit) 9 10 9 10
Pixel Density (pixels / m2) 620000 620000 396550 396550
Flatness of Unit (mm) ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1
Video Receive Port (RJ45) 1 2 1 2
Power Input Port 1 2 1 2
Brightness Correction of Single Point Supported Supported Supported Supported
Color Correction of Single Point Supported Supported Supported Supported
White Balance Brightness (nits) 800 (CT 6500k, by correction) 800 (CT 6500k, by correction) 800 (CT 6500k, by correction) 800 (CT 6500k, by correction)
CT (K) 2000~9300, adjustable 2000~9300, adjustable 2000~9300, adjustable 2000~9300, adjustable
Viewing Angle (H) 160° 160° 160° 160°
Viewing Angle (V) 160° 160° 160° 160°
Central Light Deviation ≤ 2.5% ≤ 2.5% ≤ 2.5% ≤ 2.5%
Brightness Uniformity ≥ 98% ≥ 98% ≥ 98% ≥ 98%
Color Uniformity Within ±0.003 Cx, Cy Within ±0.003 Cx, Cy Within ±0.003 Cx, Cy Within ±0.003 Cx, Cy
Contrast Ratio 5000:1 5000:1 5000:1 5000:1
Max. Power Consumption 160W/unit, 766W/m2 160W/unit, 766W/m2 160W/unit, 766W/m2 160W/unit, 766W/m2
Avg Power Consumption 53W/unit, 255W/m2 53W/unit, 255W/m2 53W/unit, 255W/m2 53W/unit, 255W/m2
Power Supply AC100~240V (50~60 Hz) AC100~240V (50~60 Hz) AC100~240V (50~60 Hz) AC100~240V (50~60 Hz)
Driving Mode Constant Current Drive Constant Current Drive Constant Current Drive Constant Current Drive
Frame Rate (Hz) 50 / 60 50 / 60 50 / 60 50 / 60
Refresh Rate (Hz) 3840 3840 3840 3840
Lifetime (Hrs) 100,000 100,000 100,000 100,000
Operating Temp. (℃ ) -10 ~ +55 -10 ~ +55 -10 ~ +55 -10 ~ +55
Storage Temp. (℃ ) -25 ~ +85 -25 ~ +85 -25 ~ +85 -25 ~ +85
Operating Humidity (RH) 10 ~ 90% RH non-condensing 10 ~ 90% RH non-condensing 10 ~ 90% RH non-condensing 10 ~ 90% RH non-condensing
Storage Humidity (RH) 10 ~ 95% RH non-condensing 10 ~ 95% RH non-condensing 10 ~ 95% RH non-condensing 10 ~ 95% RH non-condensing
Serviceability Front Front Front Front
  JY-S100
(Sender)
JY-S100-T
(HDBaseT twisted- pair sender)
JY-S100-F
(HDBaseT optical fibre sender)
JY-S100-D12
(Sender)
JY-S100-T-D12
(HDBaseT twisted-pair sender)
JY-S100-F-D12
(HDBaseT optical fibre sender)
Video Input 1 × DVI-D 1 × DVI-D
1 × HD BaseT twisted-pair
1 × DVI-D
1 × HD BaseT fibre
1 × DVI-D 1 × DVI-D
1 × HD BaseT twisted-pair
1 × DVI-D
1 × HD BaseT fibre
Standard VESA VESA
HD BaseT protocol, suggest CAT-6S/ UTP
VESA
HD BaseT protocol, single module SFP port
VESA VESA
HD BaseT protocol, suggest CAT-6S/ UTP
VESA
HD BaseT protocol, single module SFP port
Transmission Distance (m) 15 150 10,000 15 150 10,000
Max. Load Resolution 1920 × 1080p @ 60Hz 1920 × 1080p @ 60Hz 1920 × 1080p @ 60Hz 1920 × 1080p @ 60Hz 1920 × 1080p @ 60Hz 1920 × 1080p @ 60Hz
High Bit Video Input 12bit / 10bit / 8bit 12bit / 10bit / 8bit 12bit / 10bit / 8bit 12bit / 10bit / 8bit 12bit / 10bit / 8bit 12bit / 10bit / 8bit
Video Output 28 data ports output, self-adaptive 28 data ports output, self-adaptive 28 data ports output, self-adaptive 20 data ports output, self-adaptive 20 data ports output, self-adaptive 20 data ports output, self-adaptive
Video Format RGB / YUV4:2:2 / YUV4:4:4 RGB / YUV4:2:2 / YUV4:4:4 RGB / YUV4:2:2 / YUV4:4:4 RGB / YUV4:2:2 / YUV4:4:4 RGB / YUV4:2:2 / YUV4:4:4 RGB / YUV4:2:2 / YUV4:4:4
Mode Selection Supported Supported Supported Supported Supported Supported
Point-by-point Color Correction Supported Supported Supported Supported Supported Supported
Point-by-point Brightness Correction Supported Supported Supported Supported Supported Supported
LAN Port 1 × LAN port (100Base-TX), for uniform control 1 × LAN port (100Base-TX), for uniform control 1 × LAN port (100Base-TX), for uniform control 1 × LAN port (100Base-TX), for uniform control 1 × LAN port (100Base-TX), for uniform control 1 × LAN port (100Base-TX), for uniform control
Synchronous Port 1 × M/S senders data sync port 1 × M/S senders data sync port 1 × M/S senders data sync port 1 × M/S senders data sync port 1 × M/S senders data sync port 1 × M/S senders data sync port
Debug Port 1 × RS232 1 × RS232 1 × RS232 1 × RS232 1 × RS232 1 × RS232
Dimensions (W × H × D) 443 × 384 × 44 (mm) 443 × 384 × 44 (mm) 443 × 384 × 44 (mm) 443 × 384 × 44 (mm) 443 × 384 × 44 (mm) 443 × 384 × 44 (mm)
Weight (kg) 5.6 5.7 5.7 5.6 5.7 5.7
Power Input AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz) AC100~240V (50~60Hz)
Max. Consumption (W) 46 51 53 42 47 49
Operating Temp. (℃ ) -10 ~ +55 -10 ~ +55 -10 ~ +55 -10 ~ +55 -10 ~ +55 -10 ~ +55
Storage Temp. (℃ ) -25 ~ +85 -25 ~ +85 -25 ~ +85 -25 ~ +85 -25 ~ +85 -25 ~ +85
Operating Humidity (RH) 10~90% RH non-condensing 10~90% RH non-condensing 10~90% RH non-condensing 10~90% RH non-condensing 10~90% RH non-condensing 10~90% RH non-condensing
Storage Humidity (RH) 10~95% RH non-condensing 10~95% RH non-condensing 10~95% RH non-condensing 10~95% RH non-condensing 10~95% RH non-condensing 10~95% RH non-condensing
