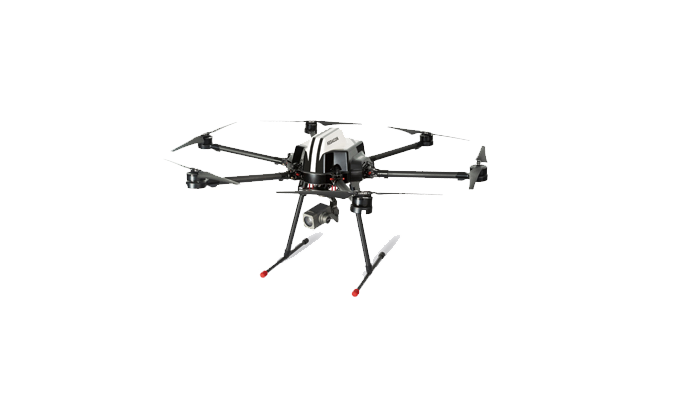

KUV-A6120

Hexacopter Drone

Features

  • High Performance
    • Carbon fiber material
    • Up to 15m/s high speed flying, 10km long distance transmission
    • Up to 45min flight time
    • Up to 3000m flight height
    • Up to 12m/s wind resistance
  • Various Security Mechanisms
    • Support low power return
    • Support signal loss return
    • Support broken propeller protection
  • Various Task Load Accessories
    • Support multiple Cameras, Megaphone, Throwing Device, meet various scenarios
    • Support up to 5.5kg task load weight
  • Abundant Functions and Features
    • One-button to take off / land / return
    • Supports location function by GPS, Beidou, GLONASS

Technical Specification

Model

  KUV-A6120

Aircraft

Number of rotors 6
Diagonal Wheelbase 1200mm
Dimensions 1573 × 1734x × 620mm / 61.93″ × 76.26″ × 24.4″
Fold Dimensions 510 × 630 × 620mm / 20.08″ × 24.81″ × 24.4″
Package Dimensions 560 × 680 × 780mm / 22.05″ × 26.78″ × 30.71″
Location Technology GPS / Beidou /  GLONASS
Net Weight 6.2kg (No battery) / 13.67lb
Max. Takeoff Weight 18.7kg / 41.23lb

Flight Parameter

Max. Flight Time (No Mount) 45mins
Hovering Accuracy Vertical: ±0.5m , Horizontal: ±1.0m
Max. Speed 15m/s
Max. Flight Height 3000m / 9842.5′
Max. Takeoff Altitude 4000m /13123.4′
Max. Ascent Speed 6m/s
Max. Descent Speed 3m/s
Max. Tilt Angle 30°
Max. Wind Speed Resistance 12m/s
Max. Angular Velocity 50°/s
Max Transmission Distance 10km
Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F

Power Battery

Capacity 2 × 22000 mAh
Battery Type Lipo
Net Weight 6.8kg / 15lb
Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F
Storage Temperature -40°C ~ 60°C / -40°F ~ 140°F
* All battery claims depend on network configuration and many other factors, actual results will vary.

Resource

Specification Document

KUV-A6120 Specification Document
