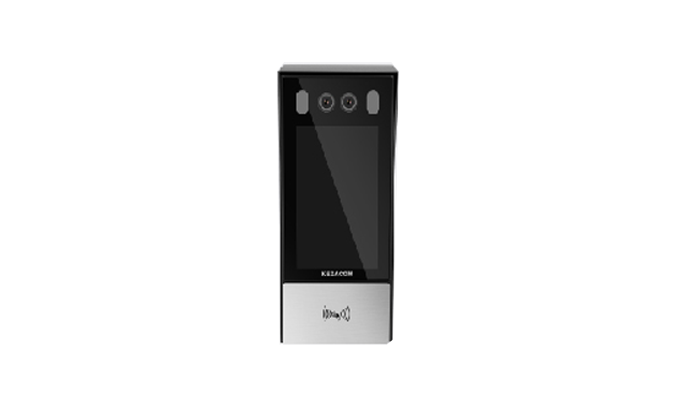

KSCA120-AI-FC

Face Recognition Terminal

Features

  • Excellent Image Quality
    • 0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
    • High definition and smooth picture, 1080p@30fps
    • 001lux,ultra low illumination
  • Recognitive Functions
    • Built-in deeplearning face recognition algorithm
    • Support face anti-spoofing
  • Flexible Access Control
    • Support Face Recogintion \ Card \ Face Recognition and Card \ Face Recognition or Card \ Remote Control
    • Support up to 20,000 face library, up to 100,000 card capacity and 1,000,000 event records
  • Abundant Functions and Features
    • 5” Capacitive touchscreen
    • Micro SD card slot, supports Automatic Network Replenishment (ANR)
    • Built-in Mic and speaker / Bi-directional audio / alarm in&out / RS485 / exit button / lock NO NC / door contact / tamper button
    • -40°C ~ 60°C operation temperature
    • IP66

Technical Specification

Part Number

  KSCA120-AI-FC

Camera

Image Sensor 2 x 1/2.8’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination Color: 0.001lux
Focal Length 4mm dula-lens
Compression H.265 / H.264
Image Resolution 1080p@30fps
Bitrate 32kbps ~ 32Mbps

Audio

Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute

Display

Size 5”
Type LCD
Resolution 480 x 800
Operation Method Capacitive touchscreen
Screen Hardness >= 6H

Access Control

Card Reader IC / M1 / CPU card
Card Capacity 100,000
Face Detection Comparison Library 20,000
Unlock Mode Face Recogintion \ Card \ Face Recognition and Card \ Face Recognition or Card \ Remote Control
Envent Capacity 1,000,000
1:N Face Recognition Supported
Face Recognition Duration (1:N) <= 0.5s
Accuracy Rate >= 99%
Face Detection Distance 0.3 ~ 2m
Face Anti-Spoofing Supported
Face Exposure Supported

Network

Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6
Wi-Fi 802.11 b/g/n 2.4G
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported

Interfaces

Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Built-in Mic, 1 x Speaker
Control 1x RS485, 1 x Exit button, 1 x Lock NO / NC, 1 x Door contact, 1 x Tamper
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Micro SD card slot, supports up to 256GB

Environmental

Operating Temperature -40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection Level IP66

Electrical

Power 12V DC ± 10%
Power Consumption Max. 20W

Mechanical

Weight 1.8kg / 3.97lb (Gross Weight)
Dimensions 215 x 94.2 x 54.2mm / 8.46’’ x 3.71’’ x 2.13’’
