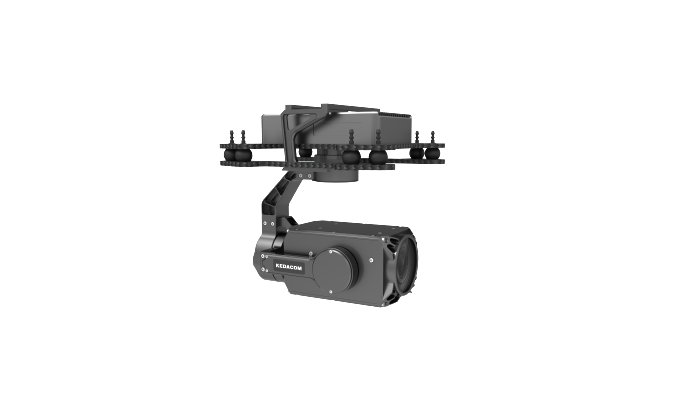

KPL-Z230

30x Optical Zoom Camera Mount

Features

  • High Stability Design
    • All-aluminum structure design, light and sturdy, good heat dissipation
    • Triaxial stabilization
    • ±0.01° image stabilization accuracy
  • Excellent Image Quality
    • 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
    • High definition and smooth picture, 1080p@30fps
    • 265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.001lux with color picture
    • 3D noise reduction / HLC

Technical Specification

Model

　 KPL-Z230

Lens

Focal Length 4.7 ~ 141mm
Optical Zoom 30x
Zoom Speed Approx 3s (Optical)
Angle of View 67.8°~ 2.34° (Wide~Tele)
Min. Object Distance 300 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F1.6 (Wide) / F4.4 (Tele)

Video

Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: D1
Frame Rate Main stream: 1080p@30fps

Secondary stream: D1@30fps
Storage Up to 128GB Micro SD card, 32GB by default

Pan and Tilt

Precision ±0.01°
Anti-vibration Axis 3 Axis
Pan / Tilt Range Pan range: 360° Endless

Tile range: -120° ~ 30°
Pan / Tilt Speed Pan speed: 200°/s

Tilt  speed: 200°/s
3D Positioning Supported
Auto-tracking Supported

Environmental

Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 10% ~ 95%
Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F

Electrical

Power Consumption Max. 6W

Mechanical

Weight 0.575kg / 1.27lb
Dimensions 150 × 95 × 142mm  /  5.91″ x 3.74″ x 5.59″

Resource

Specification Document

KPL-Z230 Specification Document

Release Date: 2015/8/2 PDF 530 KB
