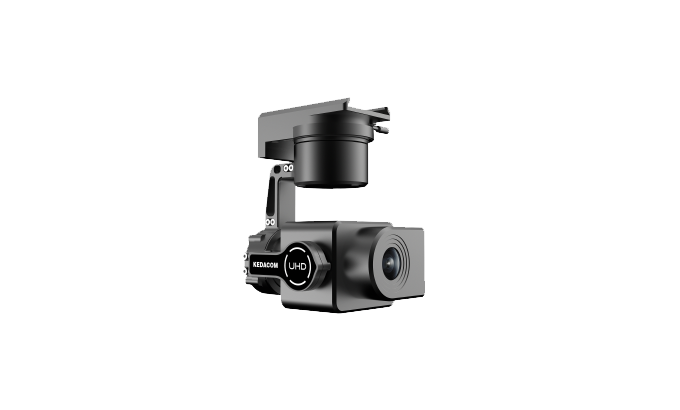

KPL-F808

4K Fixed camera mount

Features

  • High Stability Design
    • All-aluminum structure design, light and sturdy, good heat dissipation
    • Triaxial stabilization
    • ±0.01° image stabilization accuracy
  • Excellent Image Quality
    • 8.0 Megapixel 1/1.7’’ progressive scan CMOS sensor
    • High definition and smooth picture, 4096 x 2160@30fps
    • 265 video codec, saves up to 50% bandwidth and storage
    • Low illumination, 0.001lux with color picture
    • 3D noise reduction / HLC

Technical Specification

Model

　 KPL-F808

Camera

Image Sensor 1/1.7’’ Progressive Scan CMOS
Pixels 12 Megapixel
Min. Illumination Color: 0.001lux @ F1.6

B/W: 0.0001lux @ F1.6
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Shutter Speed 1 ~ 1/30,000S

Lens

Focal Length 6mm
Angle of View 64°
Min. Object Distance 200mm
Max. Aperture Ratio F1.6

Video

Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 4K

Secondary stream: 1080p
Frame Rate Main stream: 4K@30fps

Secondary stream: 1080p@30fps
Storage Up to 128GB Micro SD card, 32GB by default

Pan and Tilt

Precision ±0.01°
Anti-vibration Axis 3 Axis
Pan / Tilt Range Pan range: 360° Endless

Tile range: -120° ~ 30°
Pan / Tilt Speed Pan speed: 200°/s

Tilt  speed: 200°/s
3D Positioning Supported
Auto-tracking Supported

Environmental

Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 10% ~ 95%
Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F

Electrical

Power Consumption Max. 7W

Mechanical

Weight 0.35kg / 0.77lb
Dimensions 98 × 76 × 116mm  /  3.86″ x 2.30″ x 4.57″

Resource

Specification Document

KPL-F808 Specification Document

Release Date: 2015/8/2 PDF 540 KB
