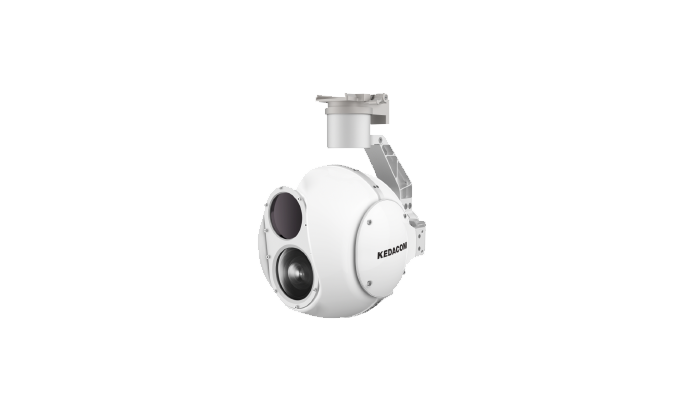

KPL-F2

Dual-Spectral camera mount

Features

  • High Stability Design
    • All-aluminum structure design, light and sturdy, good heat dissipation
    • Triaxial stabilization
    • ±0.01° image stabilization accuracy
  • Excellent Image Quality
    • 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
    • High definition and smooth picture, 1080p@30fps
    • 265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.001lux with color picture
    • 3D noise reduction / HLC

Technical Specification

Model

　 KPL-F2

Visual Light

Image Sensor 1/2.8’’ Progressive Scan CMOS
Image Resolution Main stream: 1080p

Secondary stream: D1
Pixels 2.0 Megapixel
Min. Illumination Color: 0.001lux @ F1.6

B/W: 0.0001lux @ F1.6
Shutter Speed 1 ~ 1/30,000S
Focal Length 4.7 ~ 141mm
Optical Zoom 30x
Frame Rate Main stream: 1080p@30fps

Secondary stream: D1@30fps
Compression H.265 / H.264 / MJPEG
Angle of View 67.8°~ 2.34° (Wide~Tele)
Max. Aperture Ratio F1.6 (Wide) / F4.4 (Tele)
Storage Up to 128GB Micro SD card, 32GB by default

Thermal

Resolution 800 × 600
Lens 25mm
Frame Rate 800 × 600@25fps
Temperature Range (Low) -20°C ~ 150°C / -4°F ~ 302°F
Thermal Sensitivity <40mk@f/1.0
Temperature Range (High) 160°C ~ 550°C / 320°F ~ 1022°F
Temperature Tolerance 2°C or 2%

Pan and Tilt

Precision ±0.01°
Anti-vibration Axis 3 Axis
Pan / Tilt Range Pan range: 360° Endless

Tile range: -120° ~ 30°
Pan / Tilt Speed Pan speed: 200°/s

Tilt  speed: 200°/s
Auto-tracking Supported
3D Positioning Supported
Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity ≤85%RH
Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F

Electrical

Power Consumption Max. 9W

Mechanical

Weight 1.3kg / 2.87lb
Dimensions 202 × 136 × 202mm  /  7.96″ x 5.36″ x 7.95″

Resource

Specification Document

KPL-F2 Specification Document

Release Date: 2015/8/2 PDF 568 KB
