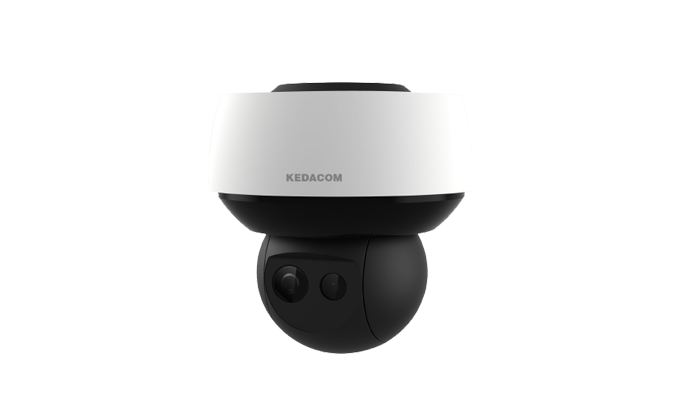

IPC980

Panoramic & Laser PTZ Speed Dome Camera

Features

  • Excellent Image Quality
    • 360° Panoramic + PTZ Camera(-T850)
    • 180° Panoramic + PTZ Camera (-U850)
    • 16 Megapixel 12 x 1/1.8’’ progressive scan CMOS sensor (-T850)
    • 8.0 Megapixel 6 x 1/1.8’’ progressive scan CMOS sensor (-U850)
    • High definition and smooth picture, 2 x 4096×1800@30fps (-T850)
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.005lux with color picture
    • Laser automatically adjusts
    • WDR / 3D noise reduction / HLC / BLC
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -40°C ~70°C
    • IP67, TVS 6000V lightning protection, surge protection and voltage transient protection
  • Large Scale
    • 50x optical zoom
    • Laser distance up to 1500m
  • Abundant Functions and Features
    • 2 x Micro SD card optional, supports Automatic Network Replenishment (ANR)
    • Up to 3 Multi-stream
    • Bi-directional audio / alarm in and out
    • Built-in O-sensor
    • Built-in GPS module

Technical Specification

Panoramic Cameras

IPC980-T850-NL IPC980-U850-NL

Camera

Image Sensor 12 x 1/1.8’’ progressive scan CMOS 6 x 1/1.8’’ progressive scan CMOS
Pixels 16 Megapixel 8.0 Megapixel
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 2 x 4096×1800

Secondary stream: D1

Main stream: 4096×1800

Secondary stream: D1

Frame Rate Main stream: 2 x 4096×1800@30fps

Secondary stream: D1@30fps

Main stream: 4096×1800@30fps

Secondary stream: D1@30fps

Bitrate 32~16384Kbps
Min. Illumination Color: 0.005lux @ (F1.6, AGC ON)

B/W: 0.0005lux @ (F1.6, AGC ON); 0lux with IR

Focal Length 4mm
Angle of View 360° 180°
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >57dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC

PTZ Camera

Image Sensor 1/1.8’’ progressive scan CMOS
Pixels 8.0 Megapixel
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 4K (4096×2160)

Secondary stream: D1

Frame Rate Main stream: 4K@30fps / 1080p@60fps

Secondary stream: D1@30fps

Bitrate 32~16384Kbps
Min. Illumination Color: 0.005lux @ (F1.2, AGC ON)

B/W: 0.0005lux @ (F1.2, AGC ON); 0lux with IR

Focal Length 5.7 ~ 285mm, 50x optical
Zoom Speed Approx 3s (Optical)
Angle of View 42°~ 1.0° (Wide~Tele)
Min. Object Distance 10 ~ 1500mm (Wide~Tele)
Focus Control Auto / Manual / Semi-Automatic
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >57dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC

Laser

Laser Distance 1500m 1000m
Laser Intensity Automatically adjust according to zoom ratio

PTZ Camera Pan and Tilt

Pan / Tilt Range 360° Endless / -20° ~ 90° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1˚~240˚/s; Pan preset speed:240°/s

Tilt manual speed: 0.1˚~200˚/s ; Tilt preset speed: 200°/s

Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compass Built-in O-sensor

Video

Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized

Audio

Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute

Network

Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Location Technology GPS
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported

Alarm

Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm

Interfaces

Ethernet 10/100M, RJ45 interface
Fiber 1000M, FC interface, Single-mode
GPS Build-in GPS module
Audio In / Out 1 x Line in / 1 x Line out
Control 1 x RS485
Alarm In / Out 8 x Input / 2 x Output
Memory Slot Built-in 2 x SD card (optional), supports up to 256GB/slot

Environmental

Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection

Electrical

Power 48V DC ± 25% (Power Adapter Included)
Power Consumption Max. 120W (IR on)

Mechanical

Weight 40 kg / 88.2lb (Gross Weight)
Dimensions Φ290 × 545.5mm / Φ11.4″ × 21.47″
