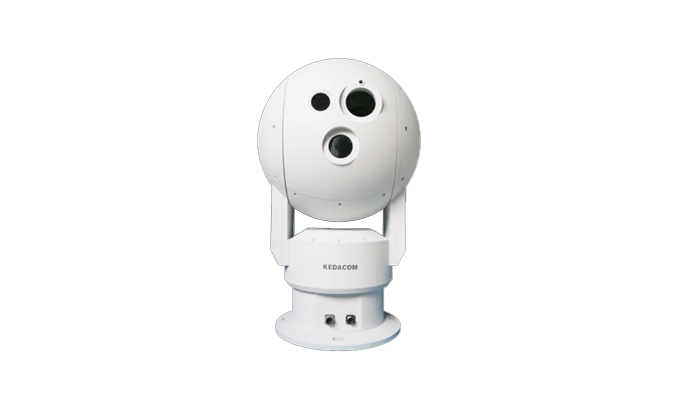

2.0MP HD Varifocal Thermal&Optical Bi-spectrum Laser PTZ Camera


  • Excellent Image Quality
    • 2.0 Megapixel 1/1.8’’ Progressive Scan CMOS Sensor
    • High definition and smooth picture, 1080p@60fps (Optical), 800 x 600@30fps (Thermal)
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Low illumination, 0.005lux with color picture
    • 120dB Ultra WDR
    • Laser automatically adjusts
    • HLC / 3D noise reduction
  • Thermal Module
    • High sensitivity thermal module, 800 x 600@30fps
    • Up to 9 palettes of adjustable color
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -40°C ~ 60°C
    • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
    • More than 30,000 hours operational lifespan of the laser illuminator
  • Large Scale
    • 60x optical zoom
    • Long range night vision up to 5Km
  • Abundant Functions and Features
    • Micro SD card slot, supports Automatic Network Replenishment (ANR)
    • Strong PT structure has smooth movements even with a 100kg carry-on load
    • Optical defog
    • Built-in O-sensor
    • AR and AF housing glass
    • Aviation connector

Technical Specification

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 800 x 600
Lens 15 ~ 150mm, 10x thermal
Pixel Interval 17μm
NETD < 40mk(@25°C,F#=1.0)
Response Waveband 8μm ~ 14μm
Color mode up to 9 modes
Image Sensor 1/1.8’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination Color: 0.005Lux @ (F3.0, AGC ON)

B/W: 0.0005Lux @ (F3.0, AGC ON); 0Lux with Laser

Shutter Speed 1 ~ 1/30,000S
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >57dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Focal Length 16.7 ~ 1000mm, 60x optical
Zoom Speed Approx 3 ~ 10s (Optical)
Angle of View 28.43°~ 0.29° (Wide~Tele)
Min. Object Distance 5000mm (Wide)
Max. Aperture Ratio F3.5 (Wide) / F16 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Auto Back Focus Auto
Optical Defog Supported
Wave Length 808nm
Power Consumption 25W
Laser Distance 5Km
Laser Intensity Automatically adjust according to zoom ratio
Illuminating Angle 0.3° ~ 30° continuous change
Day 10Km
Night 5Km
Pan / Tilt Range 360° Endless / – 60° ~ 60° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.01° ~ 180°/s; Pan preset speed: 180°/s

Tilt manual speed: 0.01° ~ 90°/s; Tilt preset speed: 90°/s

Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Pan scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compass Built-in O-sensor
Location Sensor GPS
Housing Glass AR & AF glass
Compression Format H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: D1

Frame Rate Main stream: 1080p@60fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Mirror
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (include 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm Triggers Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Alarm 4 x Input / 2 x Output
Memory Slot Micro SD card slot, supports up to 256GB
Operating Temperature -40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power 48V DC ± 25% (Power adapter included)
Power Consumption Max. 180W (Laser on)
Weight 150kg / 330.69lb (Gross Weight)
Dimensions 614 × 621 × 1170mm / 24.17’’ x 24.45’’ x 46.06’’
