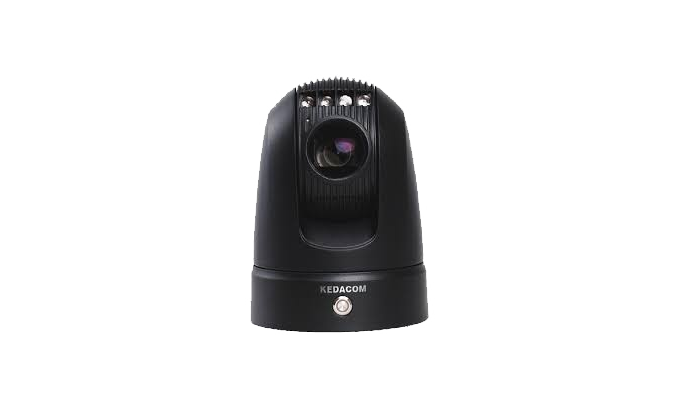

2.0MP 20x Vehicle 4G PTZ Camera


  • Excellent Image Quality
    • 0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
    • High definition and smooth picture, 1080p@30fps
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.003lux with color picture
    • IR automatically adjust
    • 3D noise reduction / HLC / BLC
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -40°C ~ 70°C
    • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
  • Large Scale
    • 20x optical zoom
    • IR distance up to 80m
  • Abundant Functions and Features
    • Built-in Micro SD card, supports Automatic Network Replenishment (ANR)
    • Built-in super magnet
    • 3G / 4G / Wi-Fi supported
    • Up to 6 hours continous working with battary in 4G
    • Vehicle based PT structure

Technical Specification

Image Sensor 1/2.8’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.5, AGC ON)

B/W: 0.0003lux @ (F1.5, AGC ON); 0lux with IR

Shutter Speed 1 ~ 1/30,000S
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >50dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Focal Length 4.7 ~ 94mm, 20x optical
Zoom Speed Approx 3s (Optical)
Angle of View 54.1°~ 2.9° (Wide~Tele)
Min. Object Distance 300 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F1.5 (Wide) / F3.0 (Tele)
Focus Control Auto / Manual / Semi-Automatic
IR LED 4pcs IR LED Array
IR Distance 40 ~ 80m
IR Intensity Automatically adjust according to zoom ratio
Pan / Tilt Range 360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1° ~ 30°/s; Pan preset speed: 40°/s

Tilt manual speed: 0.1° ~ 30°/s; Tilt preset speed: 40°/s

Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: D1

Frame Rate Main stream: 1080p@30fps

Secondary stream: D1@30fps

Bitrate 64kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi Stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Wireless 3G / 4G / Wi-Fi
3G / 4G Frequency Band FDD-LTE: B1 / B2 / B3 / B5 / B7 / B8 / B20
TDD-LTE: B38 / B39 / B40 / B41
HSPA / UMTS: 850 / 900 / 1800 / 1900 / 2100MHz
GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900MHz
TD-SCDMA: B34 / B39
Wi-Fi 802.11b/g/n 2.4G, Wi-Fi AP
Location Technology GPS, GLONASS (optional)
Application Programming Onvif (Profile S, Profile G),  API, CGI
Alarm Triggers Network disconnect
Alarm Events Alarm report / Text overlay / Email notice
Aviation Port 4-Pin 10/100M interface, 2-Pin Charge interface
Wi-Fi Built-in Wi-Fi module
GPS Build-in GPS module
3G / 4G Build-in 3G / 4G module
Memory Slot Built-in 128G Micro SD card
Operating Temperature Power supplied by built-in battary: -20°C ~ 60°C / -4°F ~ 140°F
Power supplied by DC: -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power Built-in 10000mAH rechargeable lithium battery
Up to 6 hours continous working with battary in 4G
12V DC ± 10%
Power Consumption Max. 63W (IR on)
Magnet Built-in super magnet
Weight 2.5kg / 5.51lb (Gross Weight)
Dimensions Φ136 × 185mm /  Φ5.35’’ x 7.29’’
Optional Three-proof Suitcase
