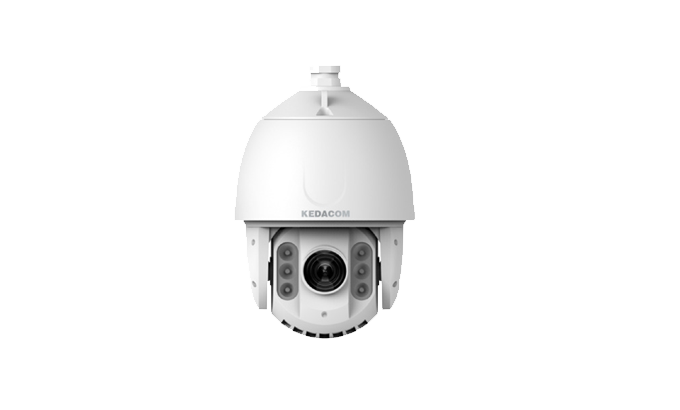

2.0MP Starlight HD 20x Speed Dome Camera


  • Excellent Image Quality
    • 2073600 Pixels 1/2.8’’ progressive scan CMOS sensor
    • High definition and smooth picture, 1920 x 1080@30fps
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.006lux with color picture
    • IR automatically adjusts
    • WDR / 3D noise reduction / HLC / BLC
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
  • Long Operation Lifespan
    • Industrial components, withstands operation temperatures of -35°C ~65°C
    • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
  • Large Scale
    • 20x optical zoom
    • IR distance up to 180m
  • Abundant Functions and Features
    • Micro SD card optional, supports Automatic Network Replenishment (ANR)
    • Up to 3 Multi-stream
    • Bi-directional audio / alarm in and out
    • Built-in O-sensor
    • PoE

Technical Specification

Image Sensor 1/2.8’’ progressive scan CMOS
Pixels 2073600 Pixels
Min. Illumination Color: 0.006lux @ (F2.8, AGC ON)

B/W: 0.0005lux @ (F2.8, AGC ON); 0lux with IR

Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >57dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Focal Length 5.2 ~ 100.4mm, 20x optical
Zoom Speed Approx. 3s (Optical)
Angle of View 61°~ 3.64° (Wide~Tele)
Min. Object Distance 1000 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F2.8
Focus Control Auto / Manual / Semi-Automatic
IR LED 6 pcs IR LED Array
IR Distance 120 ~ 180m
IR Intensity Automatically adjust according to zoom ratio
Pan / Tilt Range 360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1˚~160˚/s; Pan preset speed:160°/s

Tilt manual speed: 0.1˚~120˚/s ; Tilt preset speed: 120°/s

Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compass Built-in O-sensor
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: 720p

Frame Rate Main stream: 1080p@30fps

Secondary stream: 720p@30fps

Bitrate 32~16384Kbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Electronic Defog Supported
Image Flip Flip / Mirror
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP,SNMP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Built-in SD card (optional), supports up to 128GB
Operating Temperature -35°C ~ 65°C / -31°F ~ 149°F
Operating Humidity 10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power 24V AC / 3A (Power adapter not included) / PoE (IEEE802.3at)
Power Consumption Max. 25W (IR on)
Weight 6.6 kg / 14.55lb (Gross Weight)
Dimensions Φ222.7 × 339.5mm / Φ8.77″ × 13.35″


Specification Document

IPC427-D120-N Specification Document
