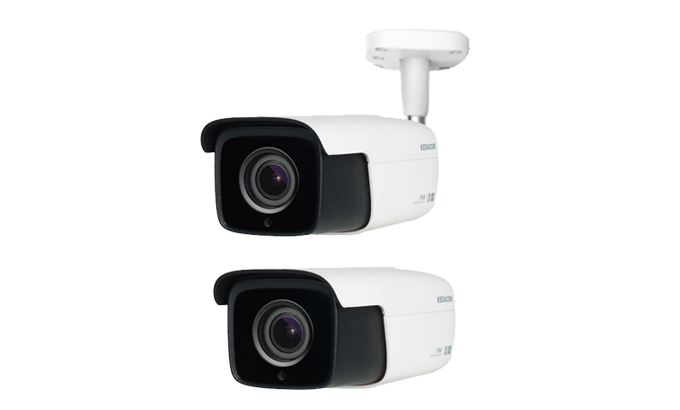

IPC2452-HN&HNB-PIR50-Z2812

4.0MP HD Network Varifocal IR Bullet Camera

Features

  • Excellent Image Quality
    • 4.0 Megapixel 1/3’’ progressive scan CMOS Sensor
    • High definition and smooth picture, 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Low illumination, 0.05lux with color picture
    • WDR / HLC / Auto Iris / 3D noise reduction
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
  • Integrated High Efficiency IR
    • Industrial IR LED with long operational lifespan
    • 30 ~ 50m IR distance
    • Smart IR function
  • A Variety of Installation Modes
    • Supports 90°, 180°, 270° image rotation
    • Motorized varifocal lens
  • Abundant Functions and Features
    • Micro SD card slot, supports Automatic Network Replenishment (ANR)
    • Up to 3 video streams
    • Anti-fog with heating glass
    • -40°C ~ 70°C operation temperature
    • PoE
    • IP67 (-HNB only)

Technical Specification

Part Number

  IPC2452-HN/HNB-PIR50-Z2812

Camera

Image Sensor 1/3’’ progressive scan CMOS
Pixels 4.0 Megapixel
Min. Illumination Color: 0.05lux @ (F1.6,  AGC ON)

B/W: 0lux with IR

Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >50dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC

Lens

Mount Type Φ14
Auto Iris DC drive
Focal Length 2.8-12mm @ F1.6 motorized varifocal lens
Focus Control Manual / Semi-Automatic / Auto
Angle of View 95°~ 38°

Infrared

IR Distance 30 ~ 50m
IR Intensity Smart IR

Video

Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 2592×1520

Secondary stream: D1

Frame Rate Main stream: 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation at 90°, 180°, 270°

Network

Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional), NTP, SNMP
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported

Alarm

Alarm Triggers Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / Email notice

Interfaces

Ethernet 10/100M, RJ45 interface
Memory Slot Micro SD card slot, supports up to 128GB

Environmental

Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection Level -HN: IP66
-HNB: IP67

Electrical

Power 12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption Max. 11W

Mechanical

Weight -HN: 1kg / 2.2lb (Gross Weight)
-HNB: 1.2kg / 2.65lb (Gross Weight)
Dimensions -HN: 187.3 x 80 x 73mm / 7.37’’ x 3.15’’ x 2.87’’
-HNB: 271.3 x 80 x 87.8mm / 10.68’’ x 3.15’’ x 3.46’’
Mounting Bracket -HN: Bracket not included
-HNB: Bracket included
