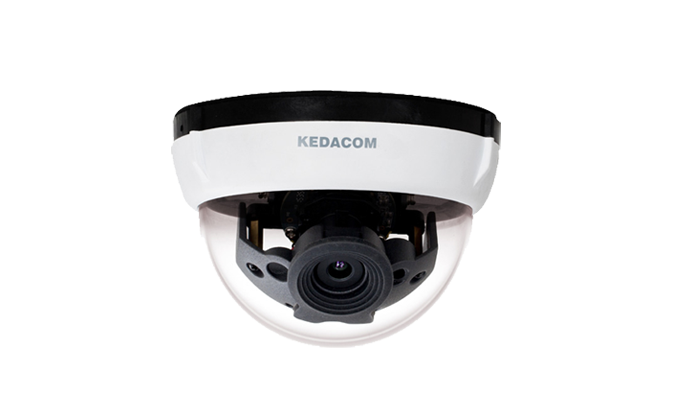

IPC2440-HN-SIR30

4.0MP HD Network Mini IR Semi Dome

Features

  • Excellent Image Quality
    • 4.0 Megapixel 1/3’’ progressive scan CMOS sensor
    • High definition and smooth picture, 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
    • H.265 video codec, saves up to 50% bandwidth and storage
    • Low illumination, 0.05lux with color picture
    • WDR / HLC / 3D noise reduction
  • Mini size
    • 0.5 kg / 1.1lb
    • Φ97.62 × 67.65mm / Φ3.85’’ x 2.67’’
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
  • Integrated High Efficiency IR
    • Industrial IR LED with long operational lifespan
    • 10 ~ 30m IR distance
    • Smart IR function
  • A Variety of Installation Modes
    • Supports 90°, 180°, 270° image rotation
  • Abundant Functions and Features
    • TF card slot, supports Automatic Network Replenishment (ANR)
    • Bi-directional audio / Built-in Mic / alarm in and out / video out / RS485
    • 2 channel audio input simultaneously
    • Dual-stream (2592×1520 + D1)
    • PoE
    • IK10

Technical Specification

Camera

Image Sensor 1/3’’ progressive scan CMOS
Pixels 4.0 Megapixel
Min. Illumination Color: 0.05lux @ (F1.6, AGC ON)

B/W: 0lux  with IR

Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >50dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC

Lens

Mount Type M12
Focal Length 2.8mm (-L0280) / 3.6mm (-L0360) / 6mm (-L0600)
Angle of View 101.2° (-L0280) / 78.6° (-L0360) / 53.4° (-L0600)
Adjustment Range Pan: -102.5° ~102.5° / Tilt: 0° ~ 70°

Infrared

IR Distance 10 ~ 30m
IR Intensity Smart IR

Video

Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 2560×1440

Secondary stream: D1

Frame Rate Main stream:  2592×1520@20fps, 2560×1440@25fps, 2048×1520@25fps, 1080p@30fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Dual-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation at 90°,180°,270°

Audio

Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute

Network

Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported

Alarm

Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm

Interfaces

Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Built-in Mic / 2 x Line in / 1 x Line out
Control 1 x RS485
Alarm In / Out 1 x Input / 1 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot TF card slot, supports up to 128GB

Environmental

Operating Temperature -40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection Level IK10

Electrical

Power 12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption Max. 11W

Mechanical

Weight 0.5 kg / 1.1lb (Gross Weight)
Dimensions Φ97.62 × 67.65mm / Φ3.85’’ x 2.67’’
