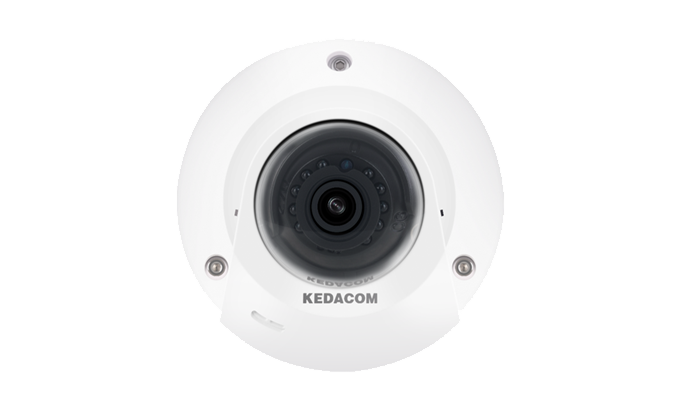

IPC2241-FN/FNW-PIR

2.0MP Starlight & Ultra WDR HD Network Mini IR Semi Dome

Features

  • Excellent Image Quality
    • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
    • High definition and smooth picture, 1080p@30fps
    • 265 video codec, saves up to 50% bandwidth and storage
    • Ultra low illumination, 0.002lux with color picture
    • 120dB Ultra WDR
    • 3D noise reduction / Auto Iris / HLC
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
  • Integrated High Efficiency IR
    • Industrial IR LED with long operational lifespan
    • 15m IR distance
    • Smart IR function
  • A Variety of Installation Modes
    • Supports 90°, 180°, 270° image rotation
  • Abundant Functions and Features
    • Micro SD card slot, supports Automatic Network Replenishment (ANR)
    • Bi-directional audio / Built-in Mic
    • Wi-Fi supported (-FNW only)
    • Dual-stream (1080p + D1)
    • Anti-fog glass
    • EN50155
    • PoE
    • IK10
    • IP67

Technical Specification

Model

  IPC2241-FN-PIR IPC2241-FNW-PIR

Camera

Image Sensor 1/2.8’’ progressive scan CMOS
Pixels 2.0 Megapixel
Min. Illumination Color: 0.002lux @ (F2.0, AGC ON)

B/W: 0.0002lux @ (F2.0, AGC ON);

Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >58dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC

Lens

Mount Type M12
Focal Length 2.8mm (-L0280) / 3.6mm (-L0360) / 6mm (-L0600) / 8mm (-L0800)
Angle of View 101.2° (-L0280) / 78.6° (-L0360) / 53.2° (-L0600) / 36.8° (-L0800)
Adjustment Range Pan: -45° ~ 45° / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°

Infrared

IR Distance 15m
IR Intensity Smart IR

Video

Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p

Secondary stream: D1

Frame Rate Main stream: 1080p@30fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 8Mbps
Bitrate Control VBR / CBR
Dual-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation 90°, 180°, 270°

Audio

Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute

Network

Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Wireless / Wi-Fi
Wi-Fi / 802.11b/g/n 2.4G, Wi-Fi AP
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported

Alarm

Alarm Triggers Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet 10/100M, RJ45 interface
Wi-Fi / Built-in Wi-Fi module
Audio In / Out 1 x Built-in Mic
Memory Slot Micro SD card slot, supports up to 256GB

Interfaces

Ethernet 10/100M, RJ45 interface
Wi-Fi / Built-in Wi-Fi module
Audio In / Out 1 x Line in / 1 x Line out / 1 x Built-in Mic
Control 1 x RS485
Alarm In / Out 2 x Input / 1 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot Micro SD card slot, supports up to 256GB

Environmental

Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection level IK10, IP67, EN50155

Electrical

Power 12V DC ± 25% / PoE (IEEE802.3af)
Power Consumption Max. 8W

Mechanical

Weight 0.5 kg / 1.1lb (Gross Weight)
Dimensions Φ103.7 × 56.4mm / Φ4.08’’ x 2.22’’
