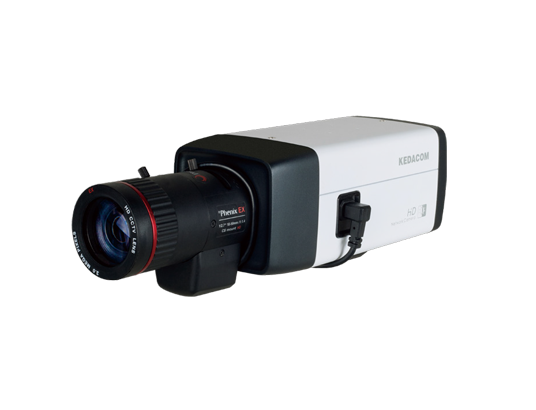

IPC113-HN

1.3MP HD Network Box Camera

Features

  • Excellent Image Quality
    • 1.3 Megapixel 1/3’’ progressive scan CMOS sensor
    • High definition and smooth picture, 960p@30fps
    • 265 video codec, saves up to 50% bandwidth and storage
    • Low illumination, 0.03lux with color picture
    • 3D noise reduction / HLC / BLC
  • Intelligent Functions
    • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
  • A Variety of Installation Modes
    • Supports 90°, 180°, 270° image rotation
    • Auto flip function
  • Abundant Functions and Features
    • Micro SD card slot, supports Automatic Network Replenishment (ANR)
    • Up to 3 Multi-stream
    • Bi-directional audio / alarm in and out / video out / RS485
    • 2 channel audio input simultaneously
    • Built-in Mic
    • Built-in O-sensor
    • PoE

Technical Specification

Camera

Image Sensor 1/3’’ progressive scan CMOS
Pixels 1.3 Megapixel
Min. Illumination Color: 0.03lux @ (F1.2, AGC ON)

B/W: 0.003lux @ (F1.2, AGC ON)

Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >52dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC

Lens (not included)

Mount Type C / CS
Auto Iris DC drive / P-Iris

Video

Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 960p

Secondary stream: D1

Frame Rate Main stream: 960p@30fps

Secondary stream: D1@30fps

Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation at 90°,180°,270° / Auto flip (Built-in G-sensor)

Audio

Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute

Network

Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported

Alarm

Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm

Interfaces

Ethernet 10/100M, RJ45 interface
Audio In / Out 2 x Line in / 1 x Line out / 1 x Built-in Mic
Control 1 x RS485
Alarm In / Out 1 x Input / 1 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot Micro SD card slot, supports up to 128GB

Environmental

Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%

Electrical

Power AC 24V ± 10% / DC 12V ± 10% / PoE (IEEE802.3af)
Power Consumption Max. 6W

Mechanical

Weight 0.5 kg / 1.1lb (Gross Weight)
Dimensions 147.5 x 68 x 61mm / 5.81’’ x 2.68’’ x 2.40’’
