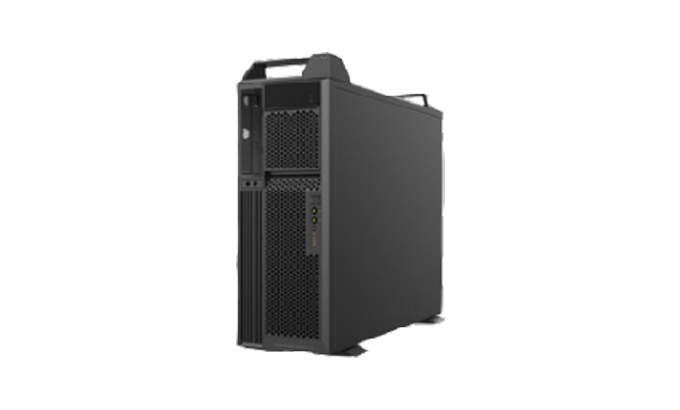

Falcon

All In One System

Features

  • High-performance, High-capacity
    • Supports up to 32 cameras in one system
    • Supports 300000 Face / Human Detection Comparison Library
    • Real-time multiple face matching, matching speed low to 2s
    • Up to 98% face recognition accuracy
  • Deep Analysis
    • Supports deep learning algorithm
    • Supports human attributes analysis
  • Abundant Functions and Features
    • Three types of snapshot: face, head and shoulder, person
    • Supports recognizing and capturing the human side and back picture
    • Supports searching picture by picture or attributes

Technical Specification

Part Number

  EPAS300-W01 EPAS300-W02 EPAS300-W03

Hardware

CPU 1 x Intel Xeon processor E5-1620V3 (4 core, 8 thread, 3.5GHz, 10MB Cache) 2 x Intel Xeon processor E5-2620V3 6 core, 16 thread, 2.4GHz, 20MB Cache)
Memory 32G 64G 128G
GPU 1 x GPU 2 x GPU
HDD Enterprise Class SATA HDD
2 x 4TB, 3.5’’, 7200 RPM, 6Gb/s, 64MB cache
Operating Temperature 5°C ~ 40°C / 41°F ~ 104°F
Operating Humidity 20% ~ 90%
Power 100 ~ 242V AC, 50 ~ 60Hz
Power Consumption Max. 1250W (included 2 x HDD) Max. 1490W (included 2 x HDD)
Weight 20kg / 44.1lb (including 2 x HDD) 21.6kg / 47.6lb (including 2 x HDD)
Chassis Dimensions 176 x 445 x 590mm / 6.92’’ x 17.52’’ x 23.23’’

System

Supported Operating System Windows Server 2012
Database Oracle
Application System Falcon Human Recognition System
User Management Admin / User
Maximum Number Of Camera 8 16 32
Face / Human Detection Comparison Library 300000
Camera Access Type Kedacom human recognitive camera

Recognitive Functions

Target Detection Identifies the faces and persons in the video streaming
Captured Picture Person, Face, Full view
Face Matching Real-time / Post-event
Analysis Analyzes attributes of human and face image, grabs the gender, age group, with or without glasses and mask, color of clothes, texture of clothes, direction, speed level
Search Mode Date and time / Camera / Face image / Person image / Attributes (gender, age group, with or without glasses and mask, color of clothes, texture of clothes, direction, speed level)
People Counting Bi-directional

Alarm

Alarm Triggers Face matching
Alarm Events Alarm report / Snapshot / Acoustic alarm

Video

Compression H.265 / H.264
Live View 1080p@30fps

Network

Network Protocols TCP/IP, UDP, RTSP, VSIP, 802.1x, IPv4
User Interface EPAS Client

Resource

Specification Document

Falcon All In One System Specification Document
