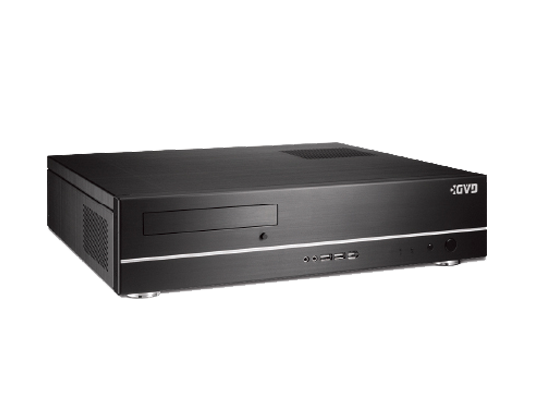

E300

VMS Manager

Video Management and NVRs Configuration

Overview

VMS Manager and Video Wall Decoder GVD E300, a centralized and scalable platform, manages up to 5,000ch cameras that allows easy project scale-up through flexible add-ons GVD product components as Video Wall Decoders, NVRs, Mobile NVRs, Backup Servers, Failover Servers, Directory Servers, LPR Servers, and Integration Gateways. GVD E300 is reliable and suitable for large-scale project, including governments, homeland security, city surveillance, airports, seaports, mining, offices, factories, campuses, hotels, banks, etc..

Features

  • Manages up to 5,000 Cameras and User Defined Tags

    GVD E300 can handle 300~5,000 channel video via different kinds of NVR as enterprise HD NVR, standalone NVR, etc. It’s simple to use defined tags to manage massive cameras.

  • Video Wall Synchronous Display

    Video operations directly apply to remote video wall, for example: drag and drop to view live video, Playback, change video layout, Start/Stop video touring, etc..

  • Seamless Video Display without Any Settings

    GVD E300 supports seamless video display which can automatically switch devices to take available video source without any settings.

  • Fully Integration for Total Solutions

    GVD E300, an open platform, is Integratable with many third-party systems such as ACS, POS, LPR, Alarm, Fire applications. etc..

  • Smooth Video with Exclusive Video Playout Control

    GVD exclusive video playout control technology enables smooth video rendering, regardless of unstable 3G, Wi-Fi, and network conditions.

  • Powerful Alarm Management

    Alarm notification by Pop-up, E-mail, DI/DO (Modbus Support) when video loss, sensor triggered, HDD crashed, system crashed, abnormal transaction, e-fence, video motion detection, etc.

Technical Specification

Item CMS Manager
CPU Intel Core i7-2600 (3.43GHz/8M cache)
Memory DDR3-1333 4G
Operation System (OS) Windows 7 Embedded
Network Protocols TCP/IP ,UDP, HTTP, HTTPs, SMTP,SNMPv3, DNS, DHCP, NTP, ARP, ICMP, FTPc, FTPs,

DDNS, RTP (RTCP, RTSP), IGMPv3, UPnP, CIFS, NFS, IEC802.1x

Language English, Spanish, French, Dutch, Italian, Japanese, Chinese, etc.
Watchdog Supports Hardware Watchdog, Software Watchdog
System Update Supports NVR Software Update
Display Performance D1@2160fps / 1.3MP@1020fps / 2MP@525fps (Turbo Mode – Real Time)
Video Codec H.264 High Profile, MPEG4, M-JPEG, MxPEG
Audio Codec Two-Way Audio, G. 711, G.726, AAC
Streaming Type Unicasting, Multicasting
Configurations Configurations of NVR, Camera, Event, Alarm, Device, DI/DO, etc.
User Authority Export Video Clip, PTZ Control, Live View, Playback, Alarm Search, Configuration,

Remote System Control, etc.

E-map Mapping Cameras and DI/DO Points, Map Hyperlink
PTZ Control PTZ Control, Preset Point, Patrol, Digital PTZ
Display Pattern 1, 2, 3, 4, 5, 6, 8, 9, 12, 13, 16, 18, 24, 25, 36, 48, 64
Viewing Operation ROI (Region of Interest), Tour
Intelligent Video Analytics. E-fence, Motion Detection, People Counting
Video Search Time, Event, Alarm
Synchronous Playback up to 16ch
Video Playback Time Slider Control Panel (Forward, Backward, Speed Control, Sync. Playback)
Video Export Video Export via USB (Supports .avi and .ava Format), Digital Watermark
Intelligent Search Missing Object, Foreign Object
Intelligent Video Analytics E-fence, Video Motion Detection
Event Log Event logs of System, Cameras, User, etc.
Alarm Event / Search Video Loss, Sensor Triggered, HDD Crashed, System Crashed, Abnormal Transaction,

E-fence, Video Motion Detection

Alarm Notification Pop-up, E-mail, DI/DO, Trigger Recording
Alarm In / Alarm Out DI/DO Control, Modbus (Master, Slave)
Transaction Viewing Live Viewing with Transaction data
Search / Playback Time, Item (Keyword), Price with Transaction data and Video
Abnormal Transaction Alarm Rule (Item, Value), Alarm Popup, Alarm Search
Lan Port Gigabit Lan (RJ45, On-board Teaming) x2
Ethernet 10/100/1000M Auto Negotiation
Local Display VGAx1, HDMIx1, DVI-Dx1 (Support Two Video Outputs Simultaneously)
Local Display Resolution 1920×1200
Hard Disk Drive SATA
Hard Disk Trays (Bays) 1 pcs
Hard Disk Capacity 500 GB
Media Drive DVD Drive
USB Port USB 2.0 Front x2, Rear x4
Communication Port RS232 (Header) x1 – Onboard I/O
Audio Port Rear : MIC-in x1, Line-out x1, Line-in x1
Power Voltage 100~240 Vac, 50-60 Hz
Power Consumption 127W
Operation Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Operation Humidity 0% ~ 90%
Storage Humidity 5% ~ 95%
Dimensions 432(W)x106(H)x427(D)mm
Net Weight 7.0 Kg
Chassis Alumnum, Black
Keyboard K205
