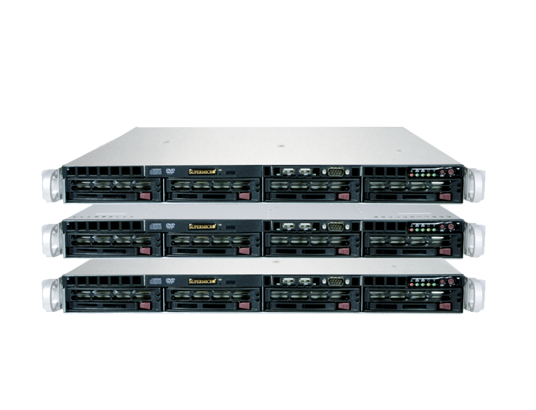

Directory Server

The Center of Entire VMS System


GVD C5002-DDS is the core component of VMX management system that provides robust, highly reliable data/service transmittance. It is the best solution for mission critical application such as government complex, city surveillance, transportation, and other large scale security projects.


  • C5002-DDS acts as the core of powerful VMS system
  • Expert design to process centralized configuration and event/alarm among large scale devices
  • Special designed scalability supports VMS system being easy to scale out and scale up
  • Recommended architecture with plural C5002-DDS provides
  • Powerful load balance design that optimizes resource use, maximizes throughput, minimizes response time, and avoids overload among VMX management system

Technical Specification

Model C5002-DDS
Processor Intel® Core™ i3-2120 Processor
Memory DDR3-1333 16G
Operation System WES7 (Embedded)
Hard Disk Drive (Hot Swappable) 2
Megapixel Recording D1, 1.3M~20M
Display Port 1
LAN Portng Gigabit LAN Port x 2 , Dilicated IPMI x 1
USB Port Front x 2 , Rear x 8

(USB 3.0 @ Rear x 2)

Dimensions (DxWxH) mm 503 x 437 x 43
Power Supply 400W (1+1) Redundant Power Supply
Voltage 100-240VAC(50~60Hz)
Remote Accessm E300


Specification Document

C5002 Specification Document
