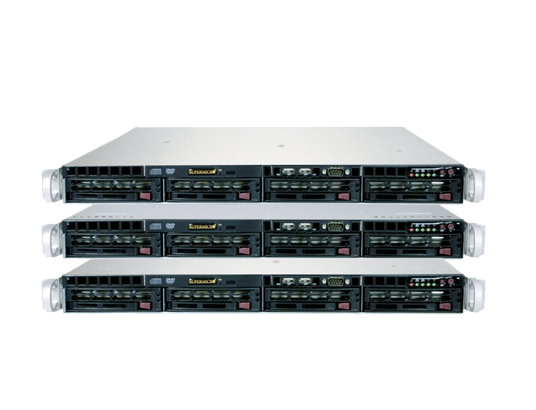

C5001

Integration Gateway

Overview

Integrates 3 Party System (LPR, ACS, IVA, Fire Alarm, etc,)

Government complex, city surveillance, casino, transportation, and homeland security projects

Features

  • Project-based integration platform enhances multiple subsystems in one large system, including Access control
  • Central configuration management for integration of NVR, CMS, VMX, Failover, Backup Server, ACS
  • Integration platform for access control, alarm system, etc

Technical Specification

Model C5001- ACS
Processor Intel® Core™ i3-2120 Processor
Memory DDR3-1333 16G
Operation System WES7 (Embedded)
Hard Disk Drive (Hot Swappable) 2
RAID Level RAID 1
Megapixel Recording D1, 1.3M~20M
Display Port 1
LAN Portng Gigabit LAN Port x 2 , Dilicated IPMI x 1
USB Port Front x 2 , Rear x 8

(USB 3.0 @ Rear x 2)

Dimensions (DxWxH) mm 503 x 437 x 43
Power Supply 400W (1+1) Redundant Power Supply
Voltage 100-240VAC(50~60Hz)
Remote Accessm E300
